The Ergonic® Control System by Putzmeister

Greater efficiency, lower costs, increased flexibility – these are the results that Putzmeister truck mounted, Truck mixer concrete pumps and stationary concrete pumps with Ergonic® systems can achieve in practice.

Download Ergonic® 3 brochure (Truck-mounted concrete pumps and stationary pumps)





Standard equipment:


Ergonic® Remote control: Within your grip!

  • Ergonomic boom control with two joysticks
  • The pump operator receives up-to-date feedback and system displays for the machine directly on the clear display
  • Simple operation of the entire display menu via rotary push button



EPS - Ergonic Pump System: Advantages at a glance

  • Low wear
  • Vibrations in the machine and boom are reduced
  • Minimal noise during the optimised pumping process
  • Includes EOC (Ergonic® Output Control) - regulates the engine to the perfect speed to minimise fuel consumption, wear and noise
  • Fault management via EGD (Ergonic® Graphic Display)
  • Fewer components and therefore lower service costs
  • Convenient radio remote control
  • Practical and reliable fault management
  • High degree of machine availability due to high-quality components and easy access to data via optional Ergonic® Tele Service (ETS) for rapid (remote) diagnosis



EGD - Ergonic® Graphic Display: Provides a full overview

Simple control and increased operational safety

It provides information about:

  • Hydraulic fluid temperature
  • Operating hours
  • Delivery pressure/delivery pressure limit
  • Delivery rate/delivery rate limit
  • Fault management
  • And much more information





Optional equipment:


NEW (on Ergonic 3 for Truck-mounted concrete pumps and Stationary concrete pumps)

iBC - Intelligent Boom Control: Advantages at a glance

  • UNRIVALLED CONVENIENCE - easy control of the boom with the joystick using just one hand. As a result, the end hose can be moved forwards, backwards or diagonally at the preselected height with a great deal of precision.
  • UNRIVALLED PRECISION - improved boom’s response characteristics and
    precision. The advanced boom damping delivers a stable, steady arm assembly at high delivery rates.
  • UNRIVALLED EASE OF FOLDING - optimised boom movements for the exact machine model. Standard movements are carried out quickly and easily.



NEW (on Ergonic 3 for Truck-mounted concrete pumps)

iSC - Ergonic® Setup Control

iSC is a system that ensures that the safety-related functions of the machine are monitored. It also allows you to work as flexibly and easily as possible within the framework of the existing directives and standards.

  • MAXIMUM VERSATILITY - adapts the machine to any and all conditions on the construction site and calculates the best support option, taking into account
    the tilt and set-up situation. The machine operator sets up the machine according to the space available on-site.
  • MAXIMUM REACH - In combination with the reliable reach prediction, machine operators can utilise the robust steel structure to its fullest potential.
  • MAXIMUM SAFETY - The system guarantees stability in any situation with the patented drop warning and the possibility of providing additional support. As concrete weight is taking into account as well, it is not necessary to reduce the working range when starting to pump.




EOC - Ergonic Output Control: From zero to a hundred in one turn

  • The delivery rate of the pump is set directly with just one knob on the radio remote control
  • The electronics of the EOC then regulate the optimal engine speed for the lowest level of fuel consumption, wear and noise
  • Ergonomic one-handed control gives the machine operator a great deal of freedom of movement
  • If the boom is not moved and the pump is off, the engine decreases to idling speed, which can save up to 10 per cent fuel



ETS – Ergonic® Tele Service: Your advantage in the event of a service

  • Higher machine availability and lower costs
  • directly on the machine via a Service laptop
  • remotely via a modem and PC in the concrete pumping service workshop or at the Putzmeister After Sales Service



EMC – Ergonic® Mixer Control

Operates the mixer drum by radio remote control, including adding water and cleaning. (for truck mixer concrete pump PUMI and truck mixer)



Ergonic® Radio Remote Control



Everything at a glance, everything under control

In addition to enabling convenient boom control, the radio remote control allows the machine operator to monitor and set various different parameters. The machine operator has access to up-to-date feedback and system information, such as engine speed, fluid temperature, concrete pressure, output, and pressure and volume limit at any time on the display. The strength of the radio signal and charge status of the battery are also indicated via bars.

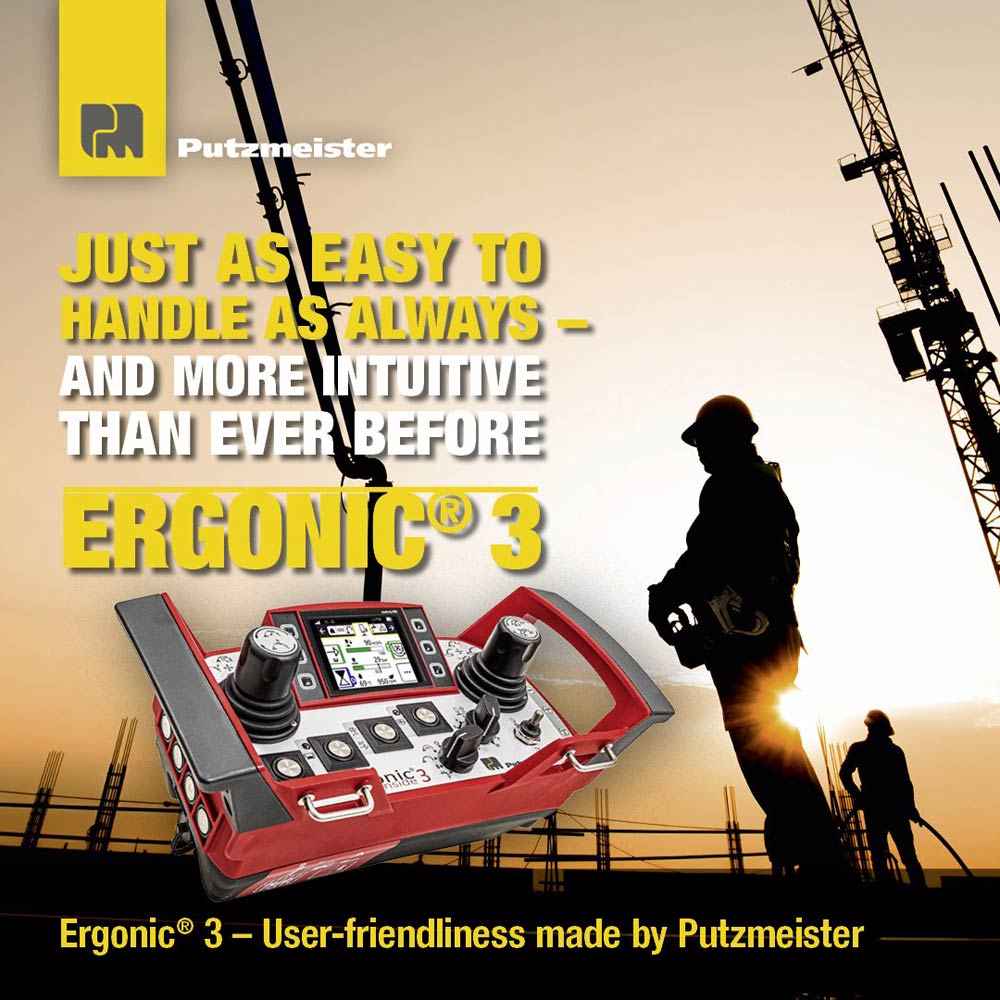

Ergonic® 3 radio remote control at a glance

  • Easy, intuitive and precise operation with a clear menu structure and intuitively arranged
    functions
  • The “static” menu bar guides users through the menu – with no chance of “getting lost”
  • Neatly and intuitively arranged functions
  • Simple menu structure with a maximum of two submenu levels
  • The menu structure is nearly identical on the remote control and the graphic display
  • The same intuitive operation on all Putzmeister products – without requiring a lot of training

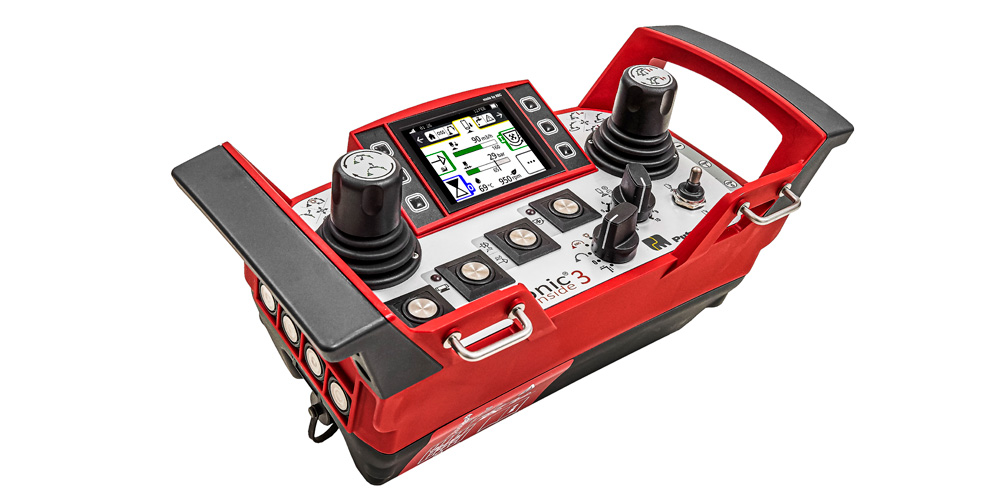

Putzmeister Radio Remote Control Ergonic3






Multiple truck-mounted concrete pumps – one remote control

By exchanging the integrated chip card of Ergonic® 2 and Ergonic® 3, the radio remote control can be used for all concrete pumps, regardless of the number of arm segments.
