Placing Booms Technologies: Optimal design for you



Putzmeister booms are designed according to the main application requirements in the respective boom classes.

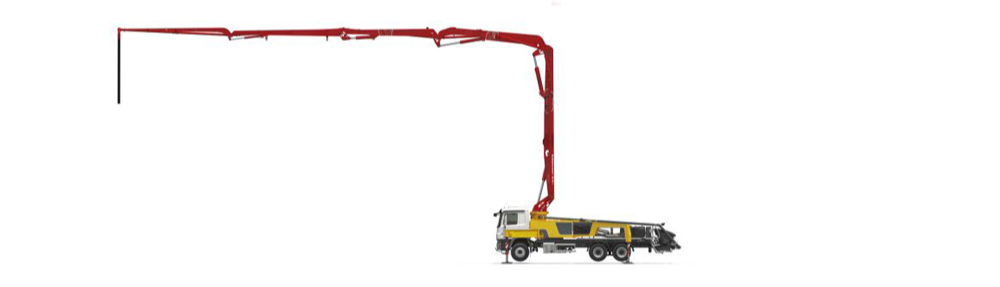

Not only are 4-arm booms generally sufficient in the small boom classes, but are also beneficial as they are lighter, and the truck can therefore carry a higher load in accessories. They are also easier to operate. With 4-arm booms the Z-fold and the roll Z-fold demonstrate the advantage of their great flexibility (excellent access to tight spaces, virtually no dead zones).

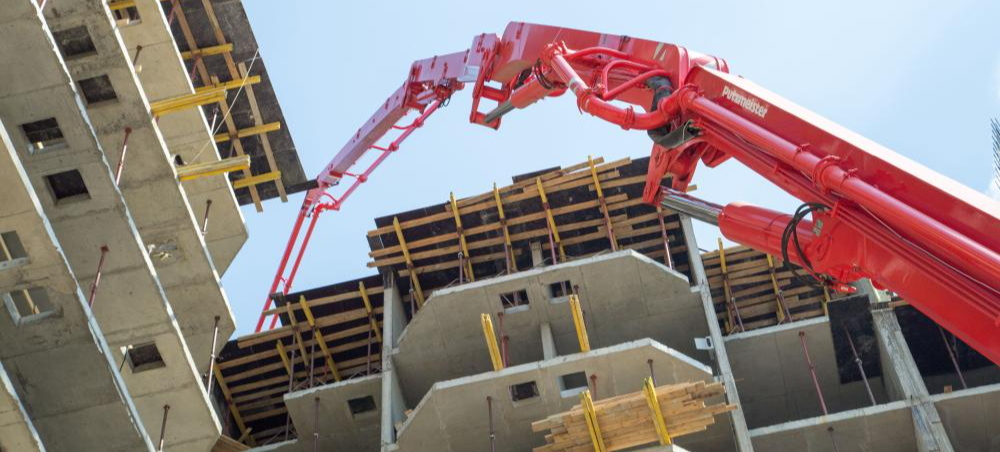

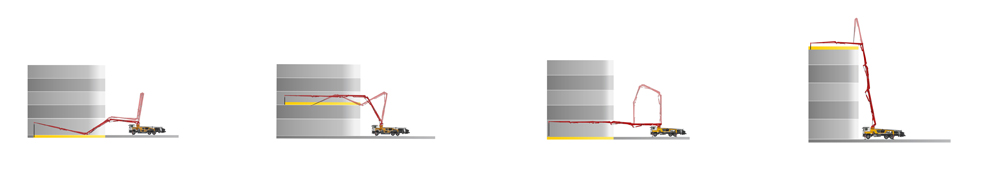

5- and 6-arm booms are particularly suited to where more flexibility is required. The application
area of the machine increases considerably, e.g. when concreting top floors, or between the floors of buildings.

The roll Z-fold is particularly suitable here, as it is designed for 5-arm booms, but also has the advantages of the Z-fold.



Benefits at a glance

  • Choice between different reaches and booms with 4, 5 or 6 arms in Z fold system, roll-Z fold system or Z-roll fold system for greater flexibility and versatility in all applications
  • No dead space on either folding type
  • Distributor booms manufactured from low-wear, low-maintenance components
  • Good accessibility to all components
  • Boom control with direct response characteristics
  • Minimal boom vibrations ensure comfortable handling
  • EBC (Ergonic® Boom Control) for damping vibrations, restricting the working area and one-handed control



Arm 1 horizontal

Various setup positions are possible such as:

  • S support (standard)
  • LF/RF support (left frontal/right frontal)
  • Ls/Rs support (left narrow/right narrow)
  • F support (frontal)
  • L/R support L0*, L1*, L2*/R0*, R1*, R2*



Arm 1 vertical

Various setup positions are possible such as:

  • S support (standard)
  • LF/RF support (left frontal/right frontal)
  • Ls/Rs support (left narrow/right narrow)
  • F support (frontal)
  • L/R support L0*, L1*, L2*/R0*, R1*, R2*

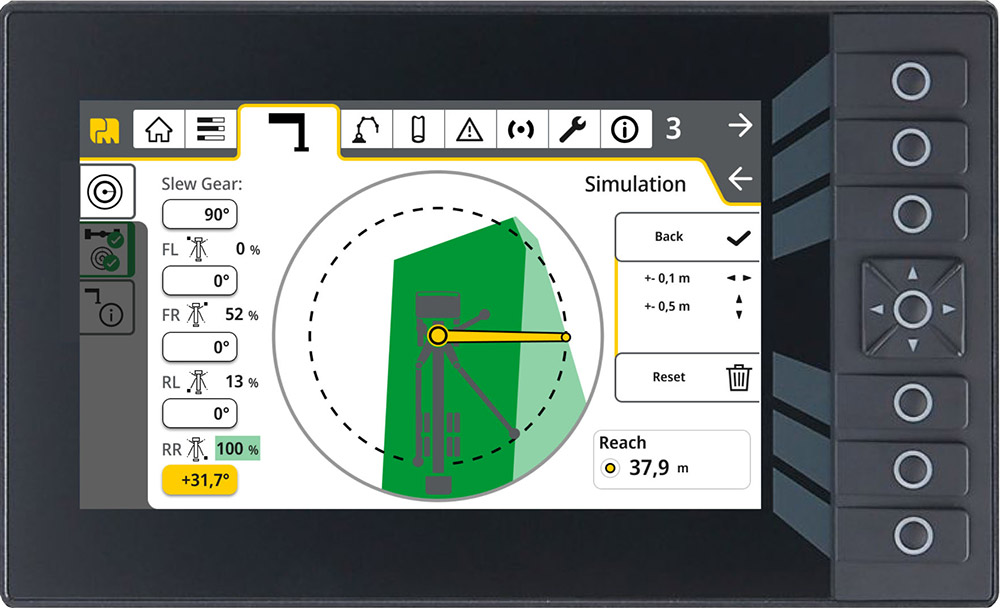

Our most supportive system ever – iSC (intelligent Setup Control)

With the iSC (intelligent Setup Control), Putzmeister is raising the stability of concrete pumps to a  whole new level. The successor to the proven ESC system offers a significant improvement in terms of machine reach and flexibility. Incorporating all relevant variables directly on the construction site results in a perfect combination of maximum stability and maximum reach. In this way, iSC can perfectly support machine operators onsite in any situation.




Increased limits thanks to FLEX base structure

The support provided for Putzmeister concrete pumps has become more and more flexible over the past years. For the swinging support legs, it is already fully flexible and offers a variety of intermediate positions for the forward support legs. The combination of iSC and the substantially optimised steel geometry now enables a level of flexibility not seen before. With the new  Putzmeister FLEX base structures*, supporting and setting up the machines is no easier and more flexible than ever before – and therefore incredibly straightforward for machine operators.


Safe support at a glance
Clearly structured figures in real time, intuitive operation and a radio remote control make setting up on the construction site quick and easy.



On the safe side – now more than ever

Maximum versatility

Optimum support options to suit the space available on-site. Even in the most difficult of conditions.

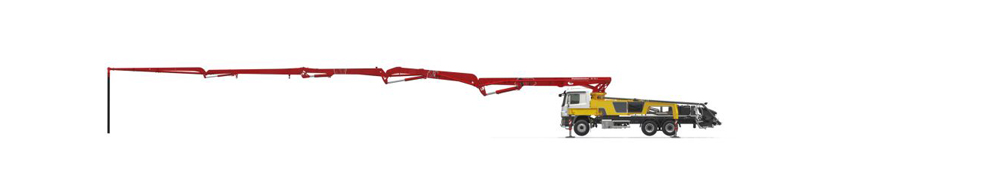

Maximum reach

Perfect interaction – the reliable reach prediction allows machine operators to utilise the robust steel structure of Putzmeister machines to their fullest potential.

Maximum safety

100 % safety, no small print. Guaranteed stability in any situation. The patented drop warning and the possibility of providing additional support help machine operators in difficult conditions.
