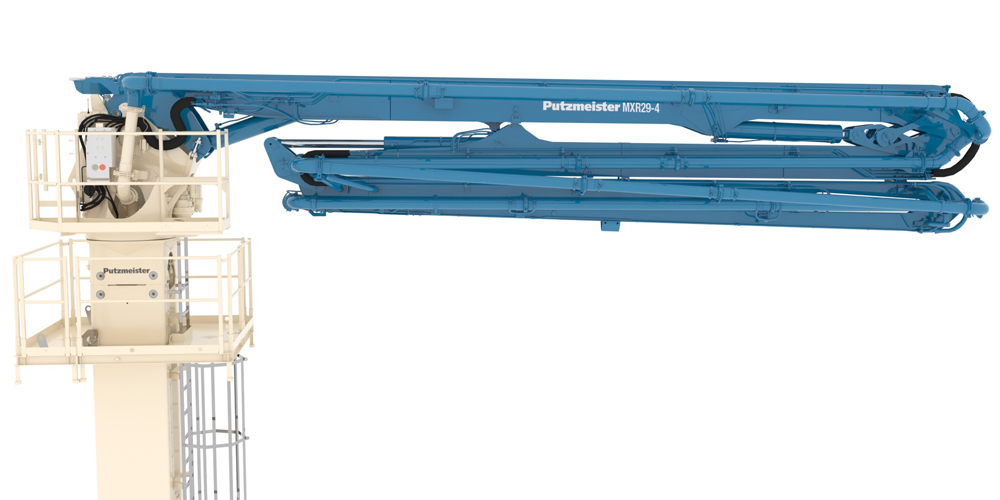

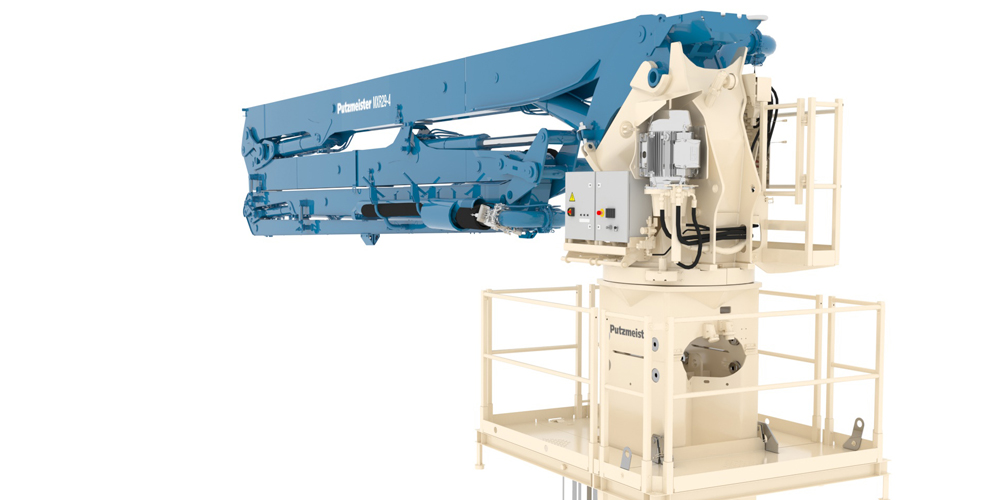

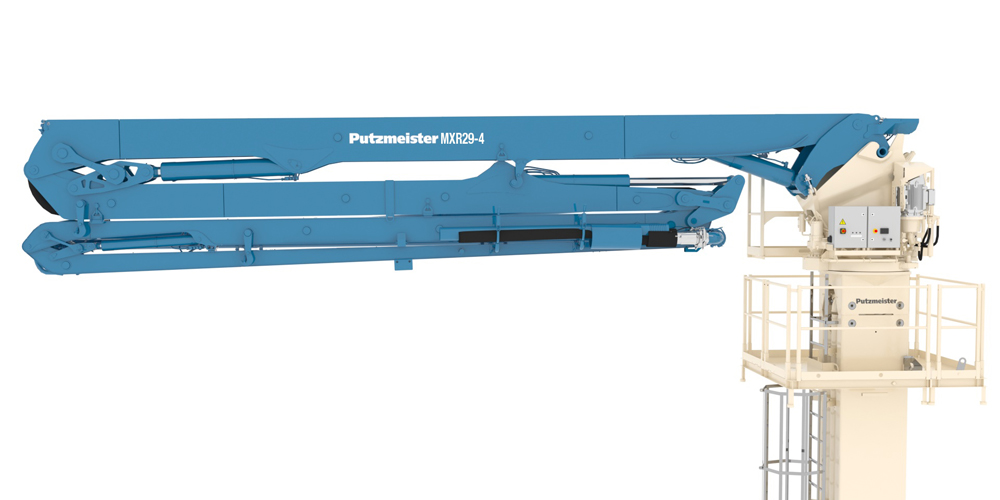

MXR 29-4

Stationary Placing Boom for High-Rise and many other Applications

The Putzmeister MXR 29-4 stationary boom is economical and ideal for different purposes. It can be used for the construction of power stations, caverns, liquid gas tanks and bridges, and on various high-rise building construction sites.

The MXR 29-4 is perfect for integration in climbing formwork, the autonomous through-climbing of floors, and free-standing installations.

In addition, the MXR 29-4 is suitable as a distributor in precast plants due to its folding type.

Key Features

Easy transport thanks to the low weight of the heaviest part of the placing boom below 5 t Easy operation of the climbing device
Convenient operation via remote control Ergonic 2.0
Good accessibility and plenty of space for assembly thanks to the new working platform
The new quick release system with hinge technology enables a quick and simple assembly of the placing boom

General Information

Arms

4
Folding Type

Z-Folding
Horizontal Reach gross

28.5 m
Reach Depth

25.3 m
Slewing Range

540 degree
End Hose - Length

4 m
Delivery Line (DN, Pressure)

125/85 mm/bar
Boom Weight

4500 kg
Pedestal Weight

2500 kg

Configuration

Length

9 m
Width

1 m
Weight

4490 kg

Length

6 m
Width

1 m
Weight

2786 kg

Length

3 m
Width

1 m
Weight

1631 kg

Length

10.5 m
Width

1 m
Weight

4767 kg

Length

1.5 m
Width

1 m
Weight

1291 kg
