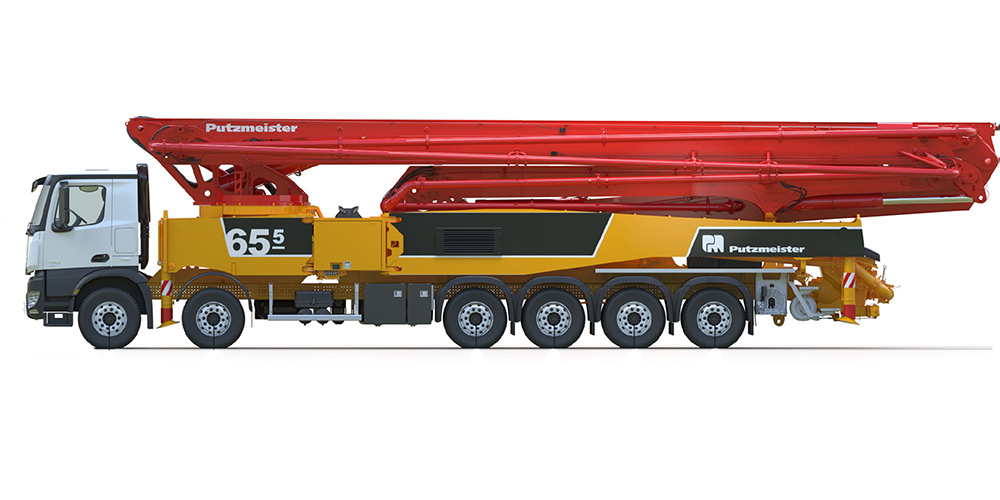

BSF 65-6

6-arm long boom for large construction sites

The new large boom from Putzmeister with a vertical reach of 64.3m and the large 19 iLS core pump with a delivery rate of 190 m³/h (theor. max.). Including Full Flex support, the absolutely flexible support option in conjunction with iSC (intelligent Setup Control). Approved in the EU.

When folded, the placing boom does not extend beyond the cab. 200 kg boom tip load, ideal for a split 4m end hose with EQV end hose squeeze valve. Lower total weight than the previous BSF 63-5 thanks to a completely new design.

The BSF 65-6 is available in the EU on Mercedes-Benz Arocs 6563 12x48 Euro 6. Equipped with the innovative Ergonic 3 control system.

Key Features

  • A 200 kg boom tip load enables a legal operation of standard boom tip equipment
  • Sturdy bolted pipehangers of the latest generation guarantees less failure and better parts availablilty
  • Enhanced safety and precision when moving the boom thanks to the iBC soft vibration damping system (optional)
  • The Putzmeister intelligent Support Control (iSC), in combination with completely flexible telescopic slewing legs and slewing legs in support position leads to unrivaled maximum of reach and flexibility
  • A real 0-support is possible
  • The Support width in front has been reduced to 11.5 m only
  • No cab overhinge and no extra low cabin needed
  • Standard axle configuration in front, therefore no expensive modification necessary
  • A super smooth reducer pipe leads to smooth pumping, even very difficult-to-pump mixes

General Information

  • Arms
    6
  • Folding Type
    RZ

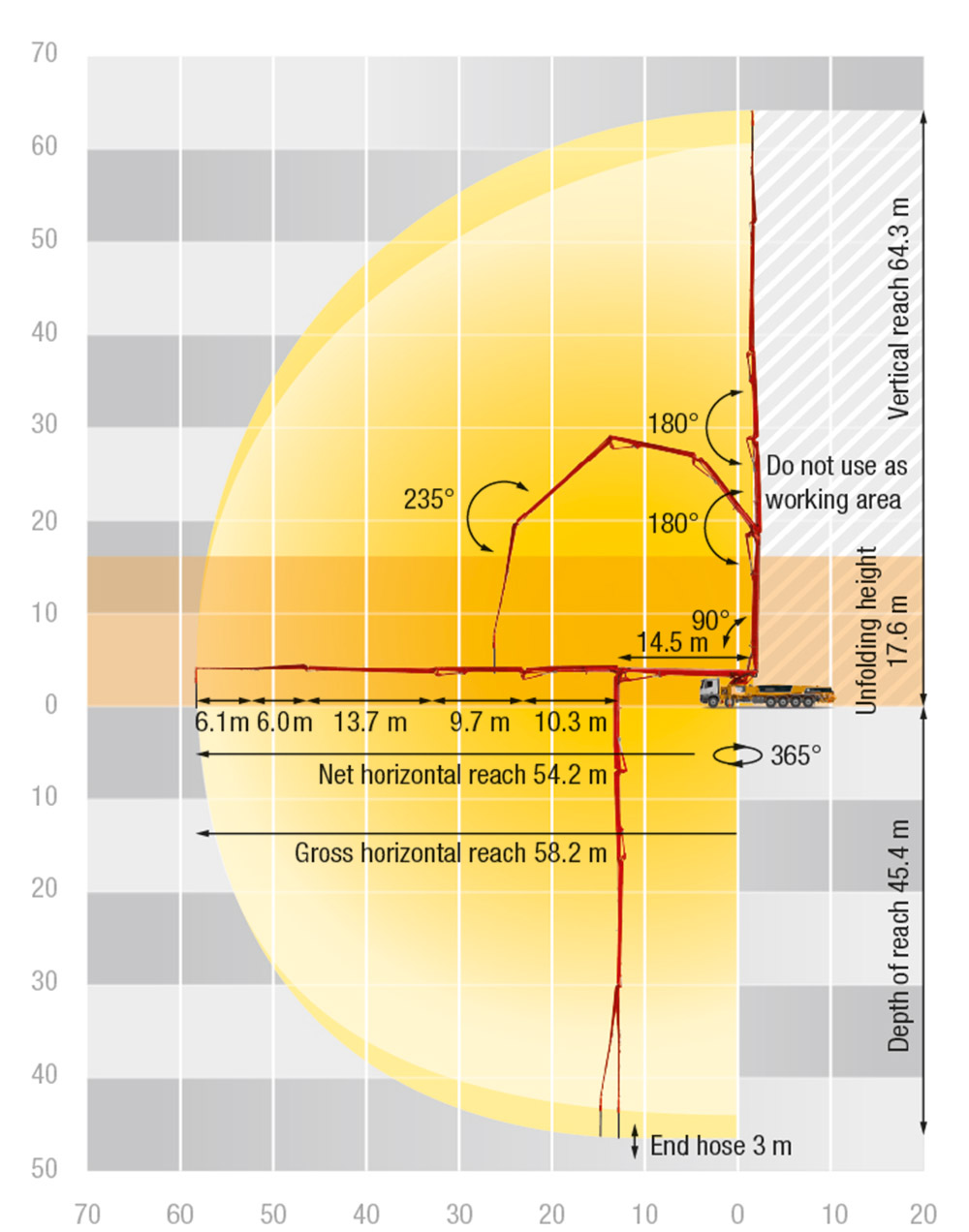

  • Vertical Reach
    64.3 m
  • Horizontal Reach gross
    58.2 m
  • Reach Depth
    45.4 m
  • Unfolding Height
    17.6 m
  • Slewing Range
    365 °
  • End Hose - Length
    4 m
  • Delivery Line
    125 mm/bar

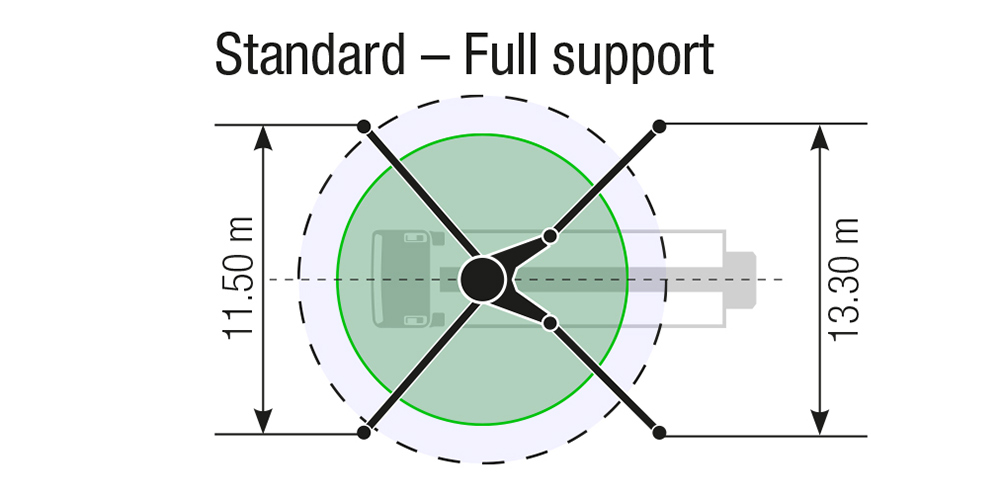

  • Support width Standard (front-rear)
    11.5/13.3 m

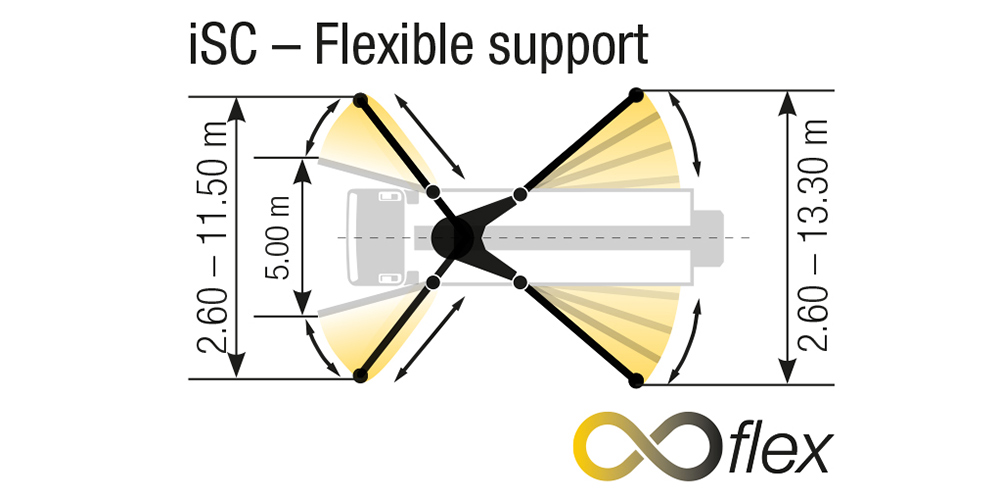

  • Support width iSC (front/rear)
    2.6-11.5/2.6-13.3 m
  • Length x Width x Height
    16750x2550x4000 mm

Configuration

  • Delivery Cylinder Diameter - Stroke Length
    250/2100 mm
  • Output (piston side)
    190 m³/hr
  • Delivery Pressure (piston side)
    85 bar
  • Strokes (piston side)
    30

Documents

Data Sheets

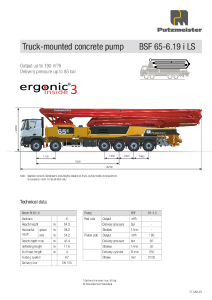

BSF 65-6 Data Sheet EN

BSF 65-6 Data Sheet EN

pdf | 830 KB

BSF 65-6 Data Sheet EN

pdf | 830 KB

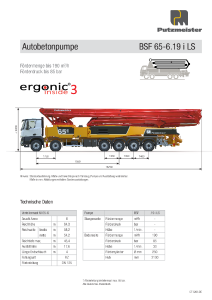

BSF 65-6 Typenblatt DE
