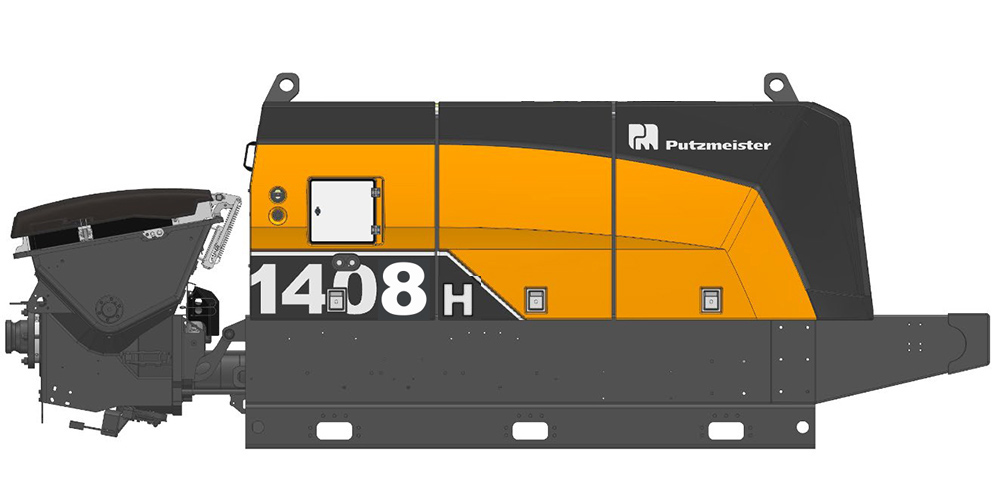

BSA 1408 H E 2025

The new version of the environment friendly BSA 1408 H E with electric motor for continuous operation in precast plants

In short. Our best BSA ever.

The new BSA 1400 series offers more variants based on same components such as the frame, the hood, the strongest core pump with reinforced hopper for 24/7 operation, combined with literally millions of improvements.

We listened carefully what the customers and operators needed and designed the pump not only according to this need but as well as for the service people when it comes to usability and intuitivity, reliability and cost efficcency. The new BSA 1400 series is a real masterpiece of the Putzmeister team.

Equipped with an environment friendly electric motor on a skid chassis. Specially designed for precast plants.

Key Features

Complete new Human machine interface (HMI) (with basic operational functions directly accessible and large coloured 7" display)
26% less hydraulic oil volume due to streamlined control systematics and new pump control Ergonic® 3 FFH
Splash guard series
Frame and core pump with more stability and lifetime
Ultra robust Glass fibre reinforced hood with enhanced service accessibility

General Information

Output (rod side)

52 m³/hr
Output (piston side)

77 m³/hr
Delivery Pressure (rod side)

109 bar
Delivery Pressure (piston side)

73 bar
Strokes (rod side)

20
Strokes (piston side)

29
Engine

Electric IE4
Engine Power

110 kW
Delivery Cylinder Diameter - Stroke Length

200x1400 mm
Pressure Connection

125 mm
Length x Width x Height

5565x1778x2106 mm
Weight

7000 kg
Trailer Type

Skid chassis
