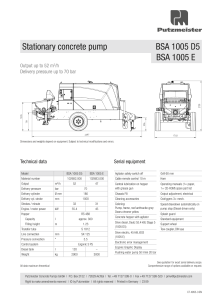

BSA 1005 E

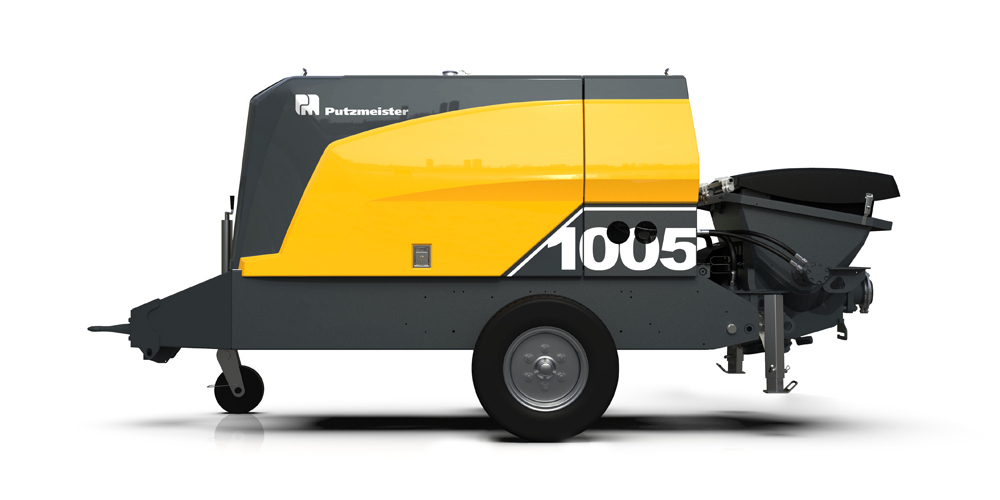

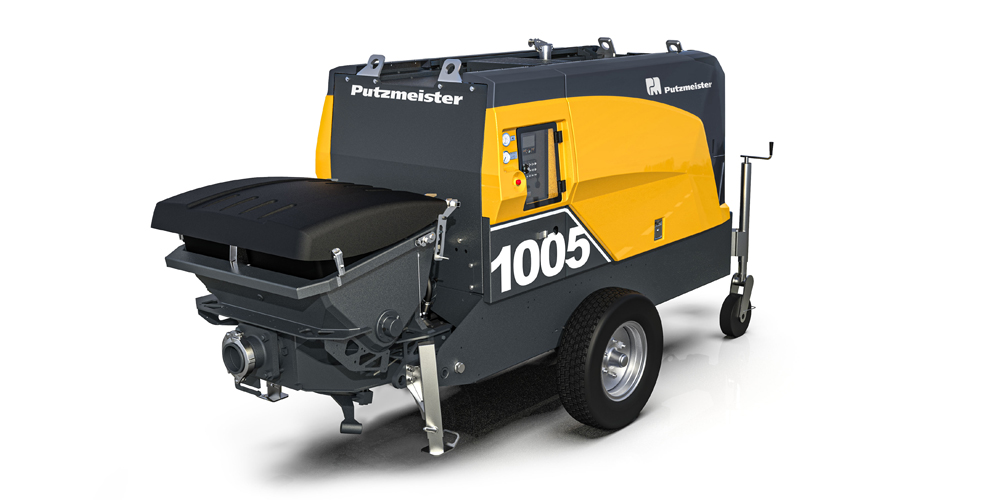

Electric driven compact trailer concrete pump for low noise requirements
The compact, quiet pump, driven by an electric motor. Equipped with the new Ergonic ® 3 PS control, the successor of the fully hydraulic control (VHS). EPS (Ergonic Pump System) enables a particularly smooth switchover of the S transfer tube while reducing wear at the same time. With the BSA 1005 E, it is possible to deliver normal concrete with a grain size of up to 32 mm.

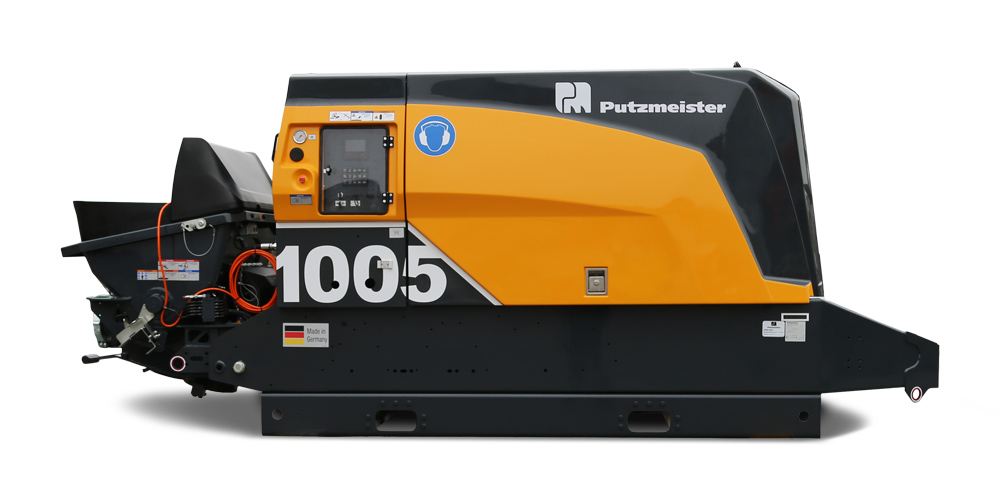

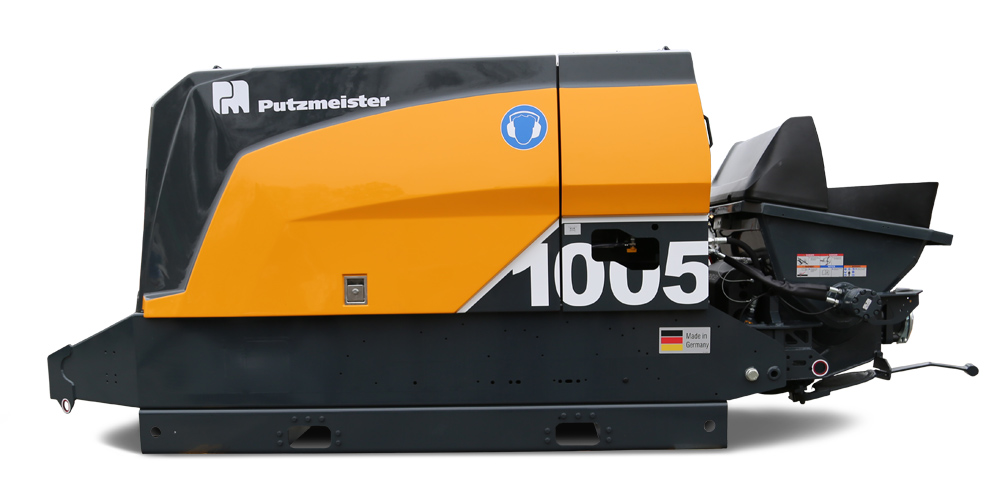

With the skid frame option, the BSA 1005 is typically used in the mining or precast industry.
Key Features
- Efficient
- Quiet
- No CO2-Emission
- Cost-saving
Technical Details
General Information
-
Output47 m³/hr
-
Delivery Pressure70 bar
-
Strokes31
-
Engine Power45 kW
-
Delivery Cylinder Diameter - Stroke Length180/1000 mm
-
Pressure Connection125 mm
-
Length x Width x Height4697 x 1748 x 2138 mm
-
Weight3100 kg
-
Trailer TypeF8
