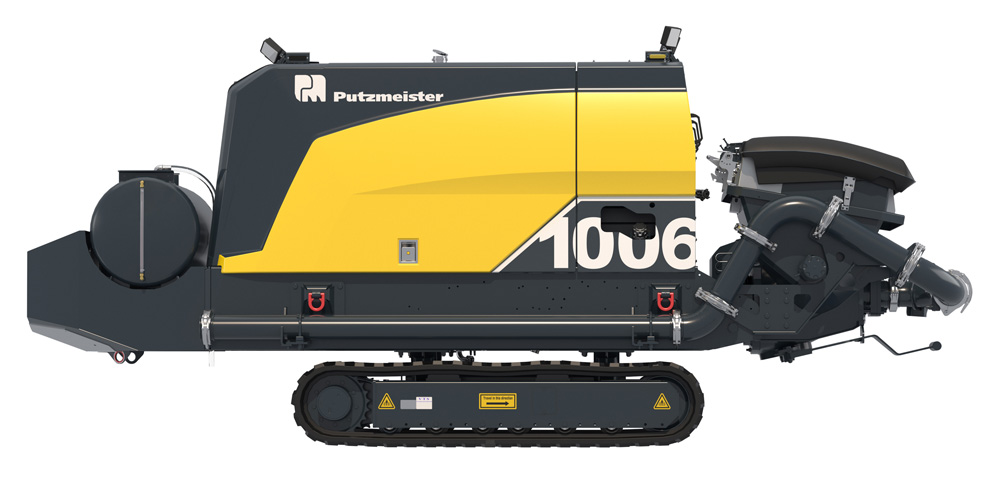

BSC 1006 D5

Crawler Concrete Pump with latest EU-Stage V 3 cylinder Diesel Engine with an output of up to 64 m³ per hour

The BSC 1006 D5 on a rubber tracked chassis is particularly suitable for smaller delivery volumes. The pump is mainly used with drilling rigs for the construction of small and medium-sized bored piles. The difference to the BSC 1005 D5 lies in the concrete pump configuration. The BSC 1006 D5 can pump up to 64 m³ of concrete per hour.

The track-mounted concrete pump enables independent travel. The machine is fully equipped with radio remote control for driving and pumping, cleaning accessories, water pump.

The BSC 1006 has many other useful options such as a 300 l water tank, air compressor and compressed air tank. These options increase self-sufficient working. The modern Ergonic 3 HP control automatically reduces the engine speed when the concrete pump is stopped, thus reducing diesel consumption.

General Information

Output

64 m³/hr
Delivery Pressure

55 bar
Strokes

42
Engine Power

55.4 kW
Emission Stage

EU-Stage V
Delivery Cylinder Diameter - Stroke Length

1000x180 mm
Pressure Connection

125 mm
Length x Width x Height

5123x1486x2289 mm
Weight

4000 kg
Chassis

Rubber Crawler
Max. Speed

1.2 / 2 km/hr
Diesel Tank

120 l
Water Pump

50l/20bar
Water Tank

300 l

Key Features

Lateral pipe routing to the front, optional
Radio Remote control for concrete pump and crawler chassis
Large water tank (300 l) at the front, optional
Rubber crawler chassis

Documents

Brochures

BSC Crawler Concrete Pumps Brochure EN

BSC Crawler Concrete Pumps Brochure EN

pdf | 1 MB

BSC Crawler Concrete Pumps Brochure EN

pdf | 1 MB

BSC Raupenbetonpumpen Prospekt DE

BSC Raupenbetonpumpen Prospekt DE

pdf | 1 MB

BSC Raupenbetonpumpen Prospekt DE

pdf | 1 MB

BSC Bombas de Betão em Lagartas Prospecto PT

BSC Bombas de Betão em Lagartas Prospecto PT

pdf | 1 MB

BSC Bombas de Betão em Lagartas Prospecto PT

pdf | 1 MB

BSC Bombas de Hormigón sobre Orugas Catálogo ES

BSC Bombas de Hormigón sobre Orugas Catálogo ES

pdf | 1 MB

BSC Bombas de Hormigón sobre Orugas Catálogo ES

pdf | 1 MB

BSC パンフレット JP

BSC パンフレット JP

pdf | 3 MB

BSC パンフレット JP

pdf | 3 MB

Data Sheets

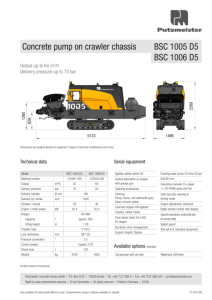

BSC 1005/1006 D5 Data Sheet EN
