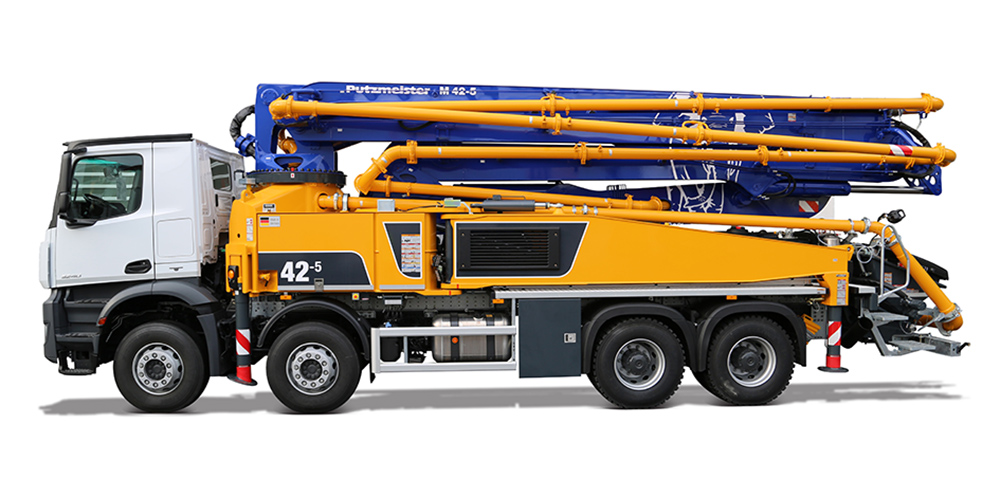

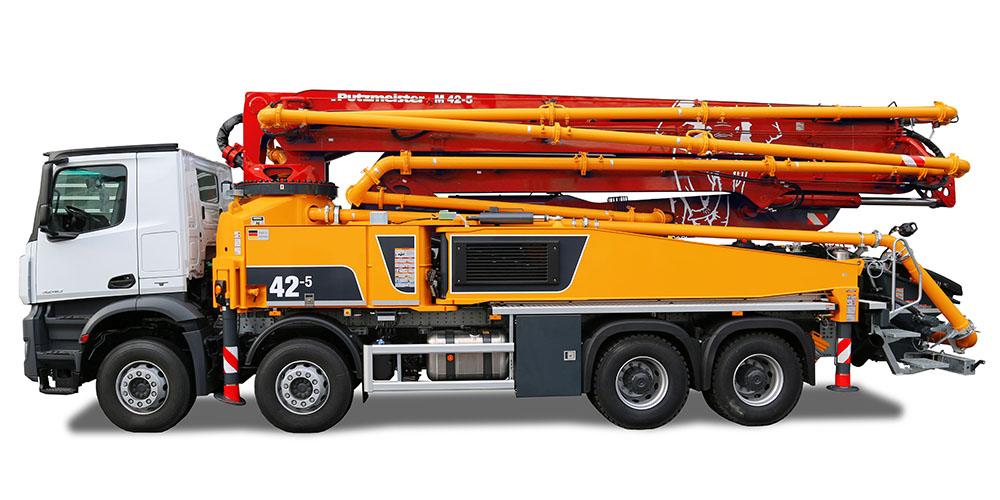

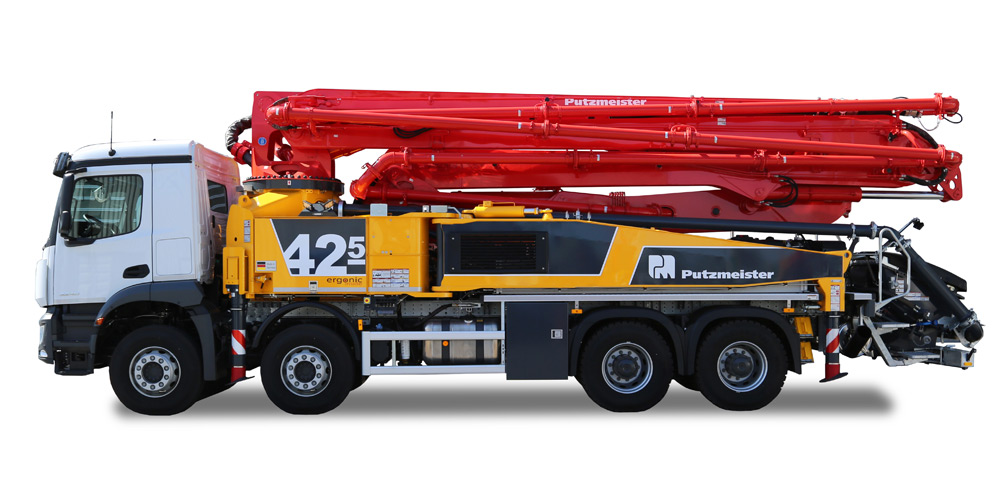

BSF 42-5

The Next Generation of the 42-5 meter Truck-Mounted Concrete Pump

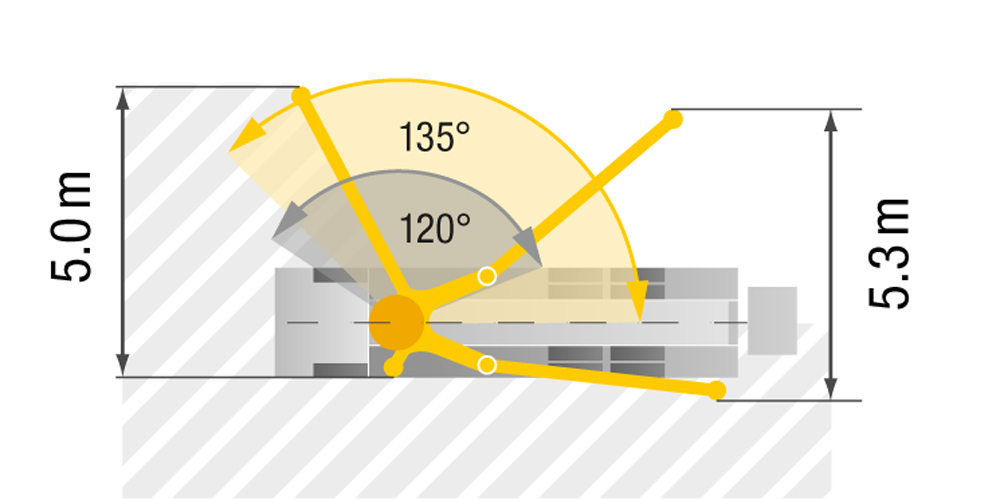

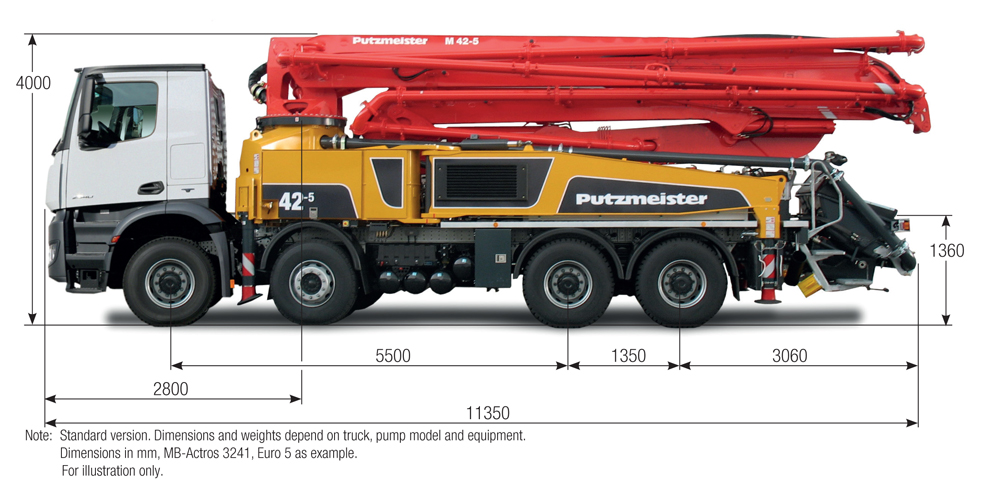

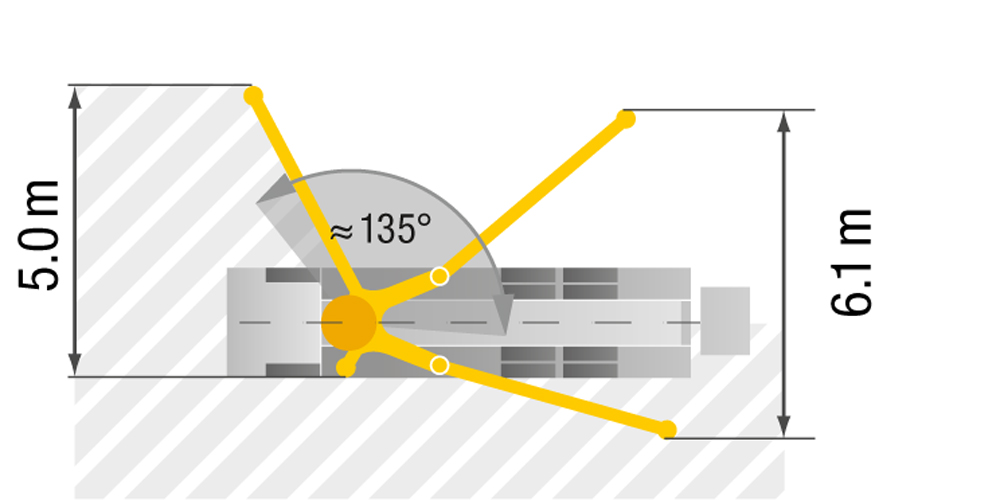

The Putzmeister BSF 42-5 truck-mounted concrete pump has improved maneuverability and weight indices for 4 axle chassis. In Europe the BSF 42-5 is equipped with iSC full flexible support and Ergonic 3 control. For countries outside of Europe it is equipped with the OSS support system, which allows you to work in a limited workspace. The concrete pump length is less than 12 meters, and it weighs less than 32 tons*.

*Depending on vehicle and equipment

Link to Reach Forecast App for BSF 42-5 with Ergonic3. EU Version

General Information

  • Arms
    5
  • Folding Type
    RZ

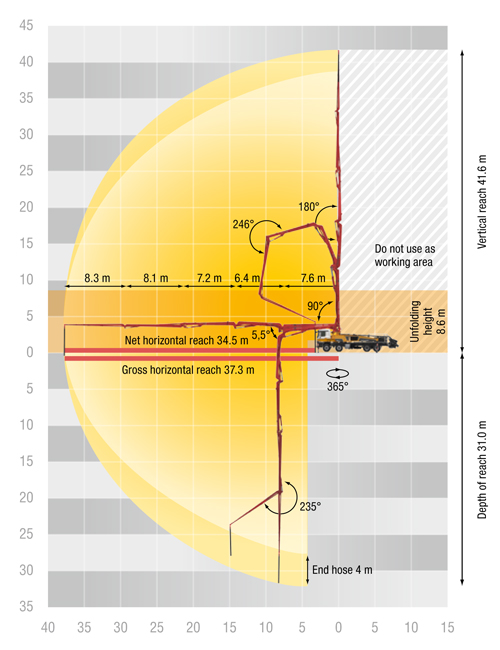

  • Vertical Reach
    41.6 m
  • Horizontal Reach gross
    37.3 m
  • Unfolding Height
    8.6 m
  • Slewing Range
    365 °
  • End Hose - Length
    4 m
  • Delivery Line
    DN 125

Key Features

  • Smooth 5-arm placing boom, thanks to intelligent laying of the delivery line and the balanced development of the steel structure
  • Efficient work through consistently clever ergonomic design
  • Even better safety through closer consideration for current standards and guidelines
  • Service-friendly as a result of its optimised accessibility and consistent bolted concept
  • Lower service costs thanks to maintenance-free components, fewer special components (only 3 standard delivery line bends) and lower volumes of functional fluids (oil volume reduced by 30 %)

Configuration

  • Delivery Cylinder Diameter - Stroke Length
    250/2100 mm
  • Output (piston side)
    170 m³/hr
  • Delivery Pressure (piston side)
    85 bar
  • Strokes (piston side)
    27
  • Delivery Cylinder Diameter - Stroke Length
    250/2100 mm
  • Output (piston side)
    160 m³/hr
  • Delivery Pressure (piston side)
    85 bar
  • Strokes (piston side)
    26
  • Delivery Cylinder Diameter - Stroke Length
    230/2100 mm
  • Output (rod side)
    160 m³/hr
  • Output (piston side)
    108 m³/hr
  • Delivery Pressure (rod side)
    85 bar
  • Strokes (rod side)
    31

Documents

Brochures

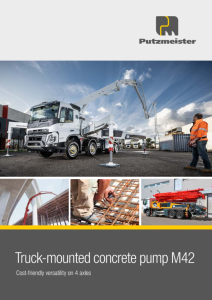

BSF 42-5 Brochure EN

BSF 42-5 Brochure EN

pdf | 2 MB

BSF 42-5 Brochure EN

pdf | 2 MB

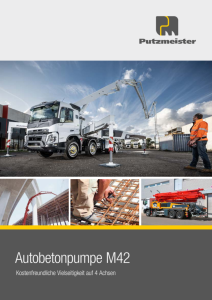

BSF 42-5 Prospekt DE

BSF 42-5 Prospekt DE

pdf | 2 MB

BSF 42-5 Prospekt DE

pdf | 2 MB

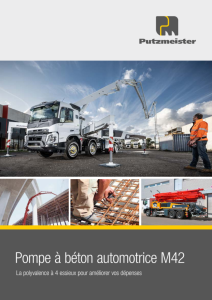

BSF 42-5 Brochure FR

BSF 42-5 Brochure FR

pdf | 2 MB

BSF 42-5 Brochure FR

pdf | 2 MB

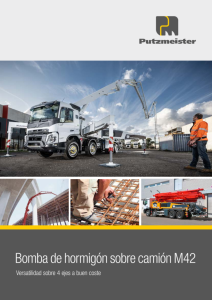

BSF 42-5 Catálogo ES

BSF 42-5 Catálogo ES

pdf | 2 MB

BSF 42-5 Catálogo ES

pdf | 2 MB
BSF Übersicht Reichweite Prospekt DE

BSF Übersicht Reichweite Prospekt DE

pdf | 217 KB

BSF Übersicht Reichweite Prospekt DE

pdf | 217 KB

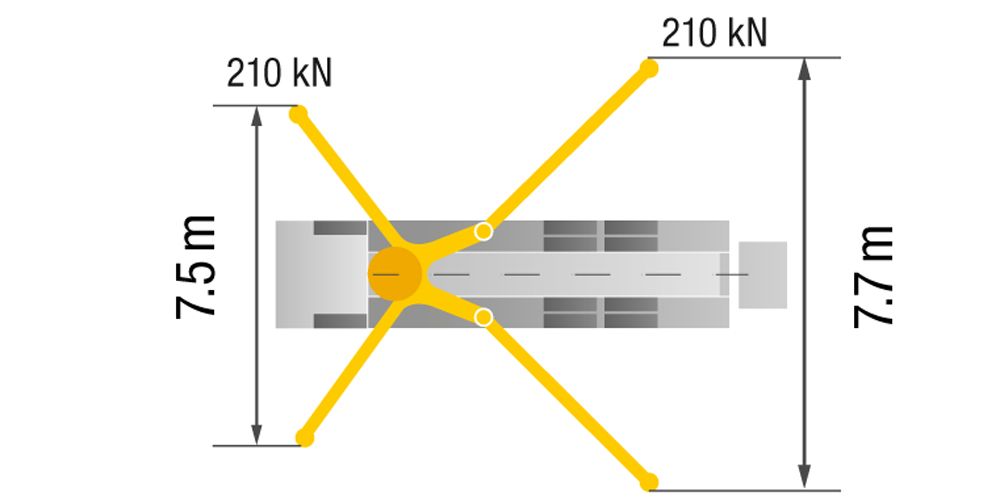

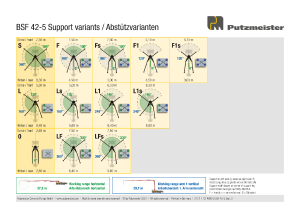

Support Variants - Abstützvarianten BSF 42-5 PCP DE-EN

Support Variants - Abstützvarianten BSF 42-5 PCP DE-EN

pdf | 569 KB

Support Variants - Abstützvarianten BSF 42-5 PCP DE-EN

pdf | 569 KB
Core Pump iLS Brochure EN

Core Pump iLS Brochure EN

pdf | 1 MB

Core Pump iLS Brochure EN

pdf | 1 MB
Kernpumpe iLS Prospekt DE

Kernpumpe iLS Prospekt DE

pdf | 1 MB

Kernpumpe iLS Prospekt DE

pdf | 1 MB
Pompes iLS Brochure FR

Pompes iLS Brochure FR

pdf | 1 MB

Pompes iLS Brochure FR

pdf | 1 MB

Data Sheets
BSF 42-5 EU Data Sheet EN

BSF 42-5 EU Data Sheet EN

pdf | 771 KB

BSF 42-5 EU Data Sheet EN

pdf | 771 KB

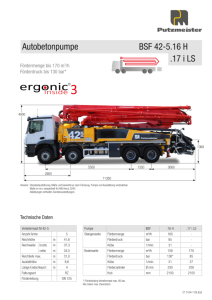

BSF 42-5 EU Typenblatt DE

BSF 42-5 EU Typenblatt DE

pdf | 771 KB

BSF 42-5 EU Typenblatt DE

pdf | 771 KB

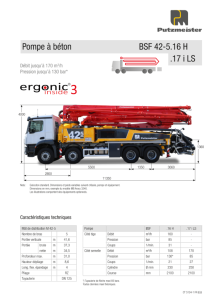

BSF 42-5 EU Fiche Téchnique FR

BSF 42-5 EU Fiche Téchnique FR

pdf | 771 KB

BSF 42-5 EU Fiche Téchnique FR

pdf | 771 KB
BSF 42-5 EU Ficha Técnica ES

BSF 42-5 EU Ficha Técnica ES

pdf | 771 KB

BSF 42-5 EU Ficha Técnica ES

pdf | 771 KB

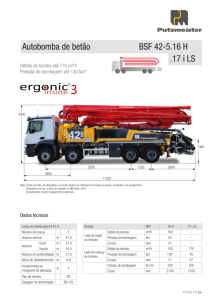

BSF 42-5 EU Ficha de dados PT

BSF 42-5 EU Ficha de dados PT

pdf | 771 KB

BSF 42-5 EU Ficha de dados PT

pdf | 771 KB

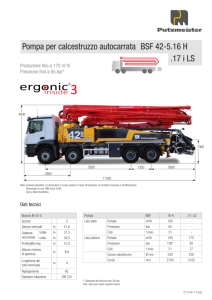

BSF 42-5 EU Scheda tecnica IT

BSF 42-5 EU Scheda tecnica IT

pdf | 771 KB

BSF 42-5 EU Scheda tecnica IT

pdf | 771 KB

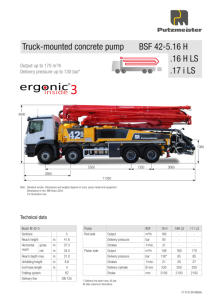

BSF 42-5 MENA Data Sheet EN

BSF 42-5 MENA Data Sheet EN

pdf | 745 KB

BSF 42-5 MENA Data Sheet EN

pdf | 745 KB

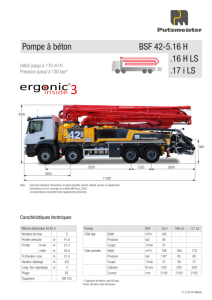

BSF 42-5 MENA Fiche Téchnique FR
