BSF 38-5

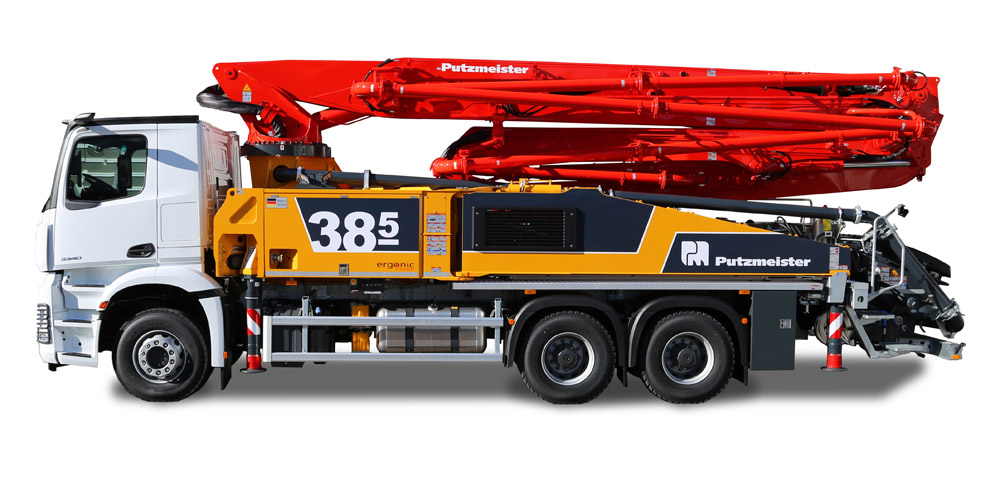

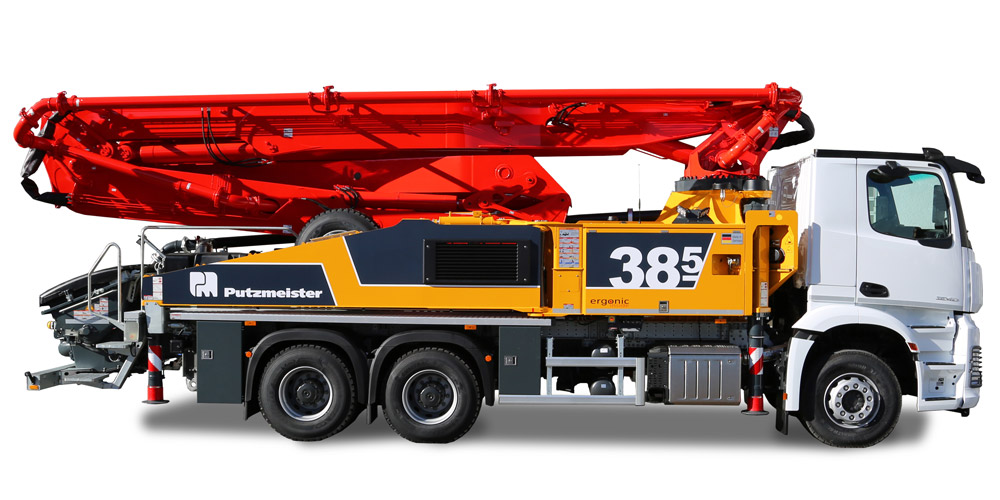

Next Generation of the Truck-Mounted Concrete Pump BSF 38-5 - Maximum Flexibility on 3 Axles

Putzmeister BSF 38-5 is the perfect truck-mounted concrete pump for medium to high-volume concrete pours. It can also be used for universal job sites. It is consistently efficient thanks to clever ergonomic design. It is also safer than before considering the current standards and guidelines. This truck mounted concrete pump can be mounted on Chassis of various manufacturers as well as on 3-axles and 4-axles chassis.

Link to Reach Forecast App for BSF 38-5 with Ergonic3. EU Version

General Information

  • Arms
    5
  • Folding Type
    RZ

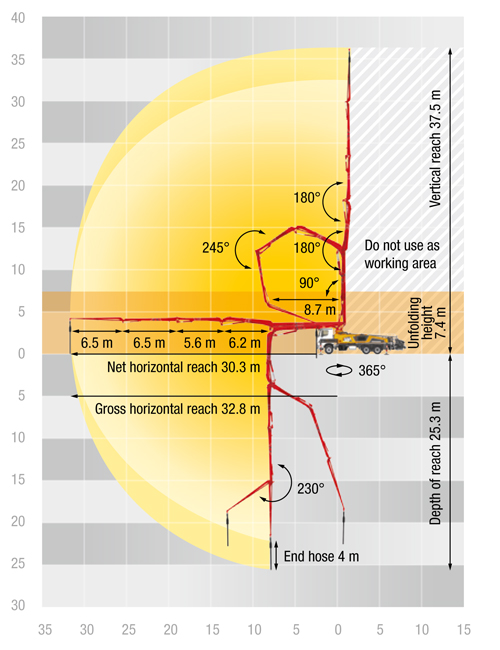

  • Vertical Reach
    37.5 m
  • Horizontal Reach gross
    32.8 m
  • Unfolding Height
    7.4 m
  • Slewing Range
    365 °
  • End Hose - Length
    4 m
  • Delivery Line
    DN 125

Key Features

  • A gross weight of less than 26 t incl. sufficient reserves for payload and operating materials
  • Steady 5-arm placing boom, thanks to intelligent laying of the delivery line and the harmonious development of the steel structure
  • Efficient work through consistently clever ergonomic design
  • Even better safety through closer consideration for current standards and guidelines
  • Service-friendly as a result of its optimised accessibility and consistent bolted concept
  • Lower service costs, thanks to maintenance-free components, fewer special components (e.g. only 2 standard delivery line bends) and lower volumes of operating materials (oil volume reduced by 30 %)

Configuration

  • Delivery Cylinder Diameter - Stroke Length
    250/2100 mm
  • Output (piston side)
    170 m³/hr
  • Delivery Pressure (piston side)
    85 bar
  • Strokes (piston side)
    27
  • Delivery Cylinder Diameter - Stroke Length
    230/2100 mm
  • Output (rod side)
    160 m³/hr
  • Output (piston side)
    108 m³/hr
  • Delivery Pressure (rod side)
    85 bar
  • Strokes (rod side)
    31

Documents

Brochures
BSF 38-5 Brochure EN

BSF 38-5 Brochure EN

pdf | 2 MB

BSF 38-5 Brochure EN

pdf | 2 MB
BSF 38-5 Prospekt DE

BSF 38-5 Prospekt DE

pdf | 2 MB

BSF 38-5 Prospekt DE

pdf | 2 MB

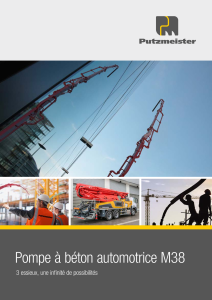

BSF 38-5 Brochure FR

BSF 38-5 Brochure FR

pdf | 2 MB

BSF 38-5 Brochure FR

pdf | 2 MB
BSF 38-5 Broşürler TR

BSF 38-5 Broşürler TR

pdf | 3 MB

BSF 38-5 Broşürler TR

pdf | 3 MB
BSF Übersicht Reichweite Prospekt DE

BSF Übersicht Reichweite Prospekt DE

pdf | 217 KB

BSF Übersicht Reichweite Prospekt DE

pdf | 217 KB

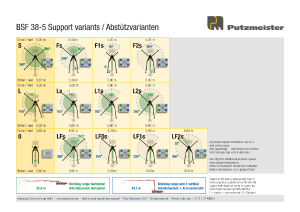

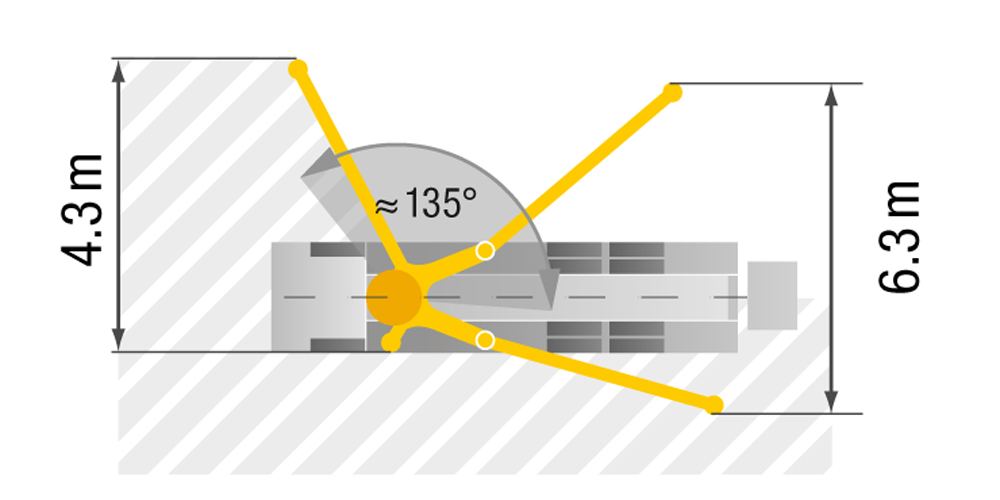

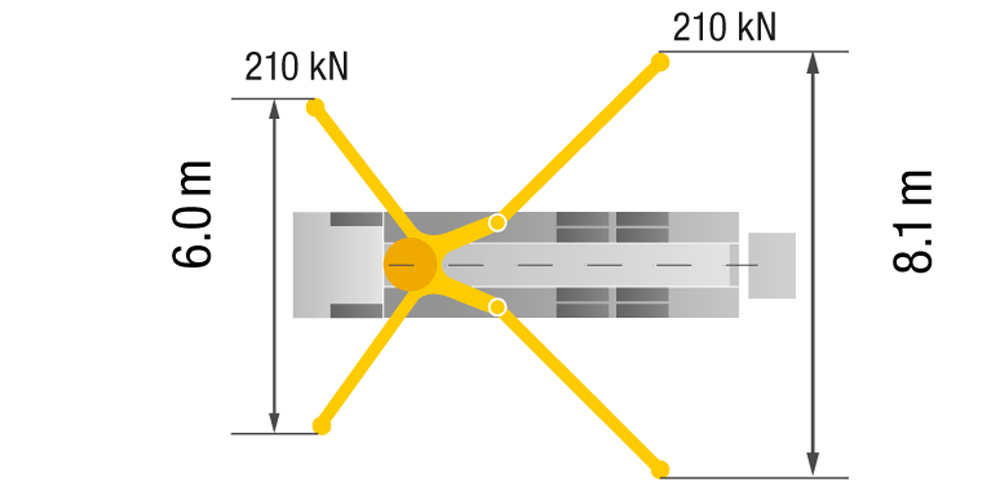

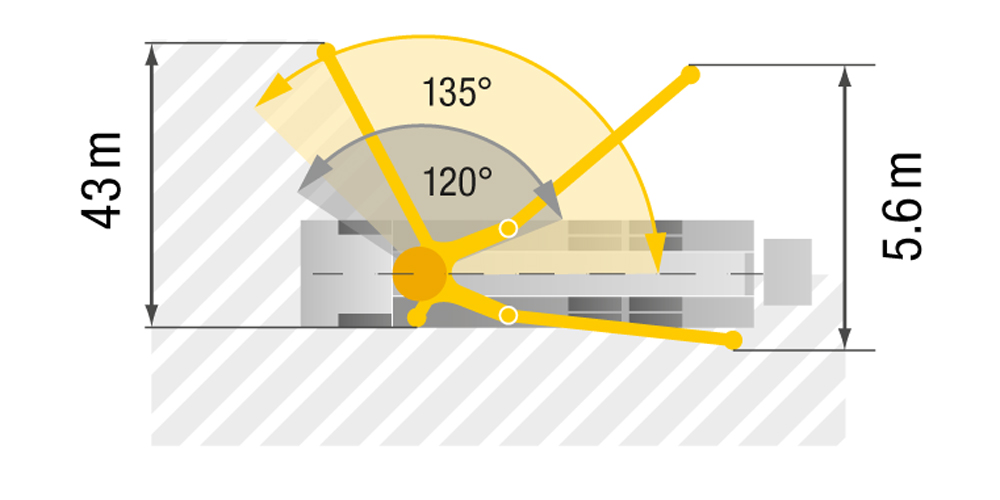

Support Variants BSF 38-5 PCP EN

Support Variants BSF 38-5 PCP EN

pdf | 459 KB

Support Variants BSF 38-5 PCP EN

pdf | 459 KB
Core Pump iLS Brochure EN

Core Pump iLS Brochure EN

pdf | 1 MB

Core Pump iLS Brochure EN

pdf | 1 MB

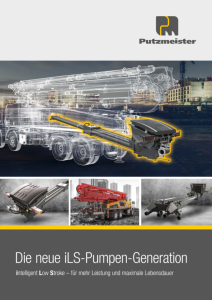

Kernpumpe iLS Prospekt DE

Kernpumpe iLS Prospekt DE

pdf | 1 MB

Kernpumpe iLS Prospekt DE

pdf | 1 MB

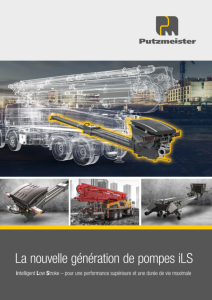

Pompes iLS Brochure FR

Pompes iLS Brochure FR

pdf | 1 MB

Pompes iLS Brochure FR

pdf | 1 MB
Ergonic 3 CE Brochure EN

Ergonic 3 CE Brochure EN

pdf | 2 MB

Ergonic 3 CE Brochure EN

pdf | 2 MB
Ergonic 3 CE Prospekt DE

Ergonic 3 CE Prospekt DE

pdf | 2 MB

Ergonic 3 CE Prospekt DE

pdf | 2 MB
Ergonic 3 CE Brochure FR

Ergonic 3 CE Brochure FR

pdf | 2 MB

Ergonic 3 CE Brochure FR

pdf | 2 MB
Ergonic 3 CE Catálogo ES

Ergonic 3 CE Catálogo ES

pdf | 2 MB

Ergonic 3 CE Catálogo ES

pdf | 2 MB

Data Sheets

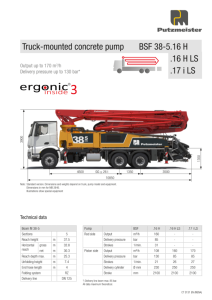

BSF 38-5 EU 3-Axles Data Sheet EN

BSF 38-5 EU 3-Axles Data Sheet EN

pdf | 1 MB

BSF 38-5 EU 3-Axles Data Sheet EN

pdf | 1 MB
BSF 38-5 EU 3-Achser Typenblatt DE

BSF 38-5 EU 3-Achser Typenblatt DE

pdf | 1 MB

BSF 38-5 EU 3-Achser Typenblatt DE

pdf | 1 MB

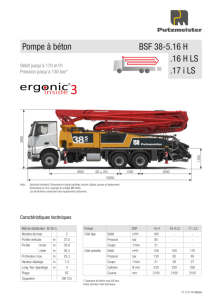

BSF 38-5 EU 3-essieux Fiche Téchnique FR

BSF 38-5 EU 3-essieux Fiche Téchnique FR

pdf | 1 MB

BSF 38-5 EU 3-essieux Fiche Téchnique FR

pdf | 1 MB
BSF 38-5 EU 3-Ejes Ficha Técnica ES

BSF 38-5 EU 3-Ejes Ficha Técnica ES

pdf | 1 MB

BSF 38-5 EU 3-Ejes Ficha Técnica ES

pdf | 1 MB

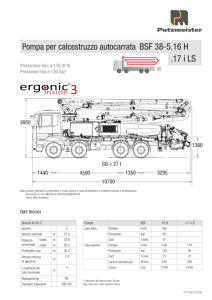

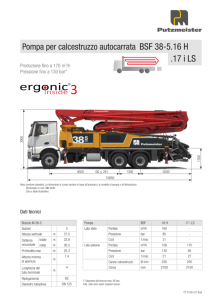

BSF 38-5 EU 3 assi Scheda tecnica IT

BSF 38-5 EU 3 assi Scheda tecnica IT

pdf | 1 MB

BSF 38-5 EU 3 assi Scheda tecnica IT

pdf | 1 MB
BSF 38-5 EU 3-Eixos Ficha de dados PT

BSF 38-5 EU 3-Eixos Ficha de dados PT

pdf | 1 MB

BSF 38-5 EU 3-Eixos Ficha de dados PT

pdf | 1 MB

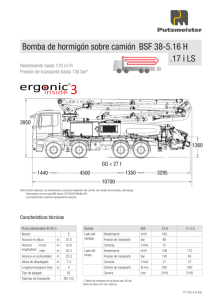

BSF 38-5 EU 4-Ejes Ficha Técnica ES

BSF 38-5 EU 4-Ejes Ficha Técnica ES

pdf | 763 KB

BSF 38-5 EU 4-Ejes Ficha Técnica ES

pdf | 763 KB

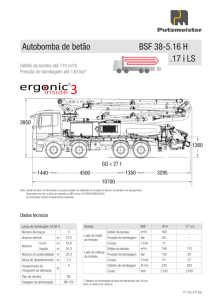

BSF 38-5 EU 4-Eixos Ficha de dados PT

BSF 38-5 EU 4-Eixos Ficha de dados PT

pdf | 764 KB

BSF 38-5 EU 4-Eixos Ficha de dados PT

pdf | 764 KB

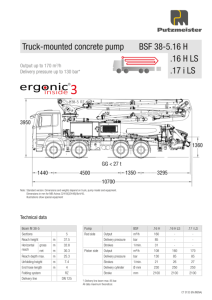

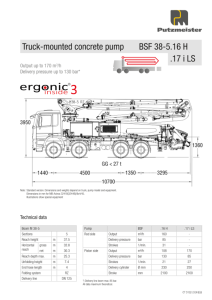

BSF 38-5 EU 4-Axles Data Sheet EN

BSF 38-5 EU 4-Axles Data Sheet EN

pdf | 763 KB

BSF 38-5 EU 4-Axles Data Sheet EN

pdf | 763 KB

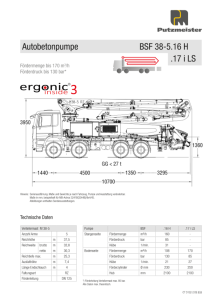

BSF 38-5 EU 4-Achser Typenblatt DE

BSF 38-5 EU 4-Achser Typenblatt DE

pdf | 763 KB

BSF 38-5 EU 4-Achser Typenblatt DE

pdf | 763 KB

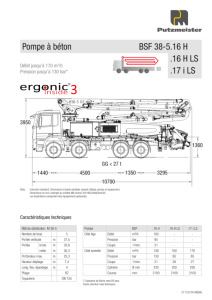

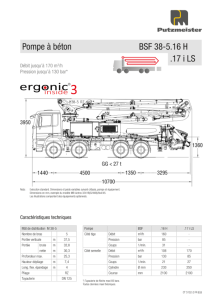

BSF 38-5 EU 4-essieux Fiche Téchnique FR
