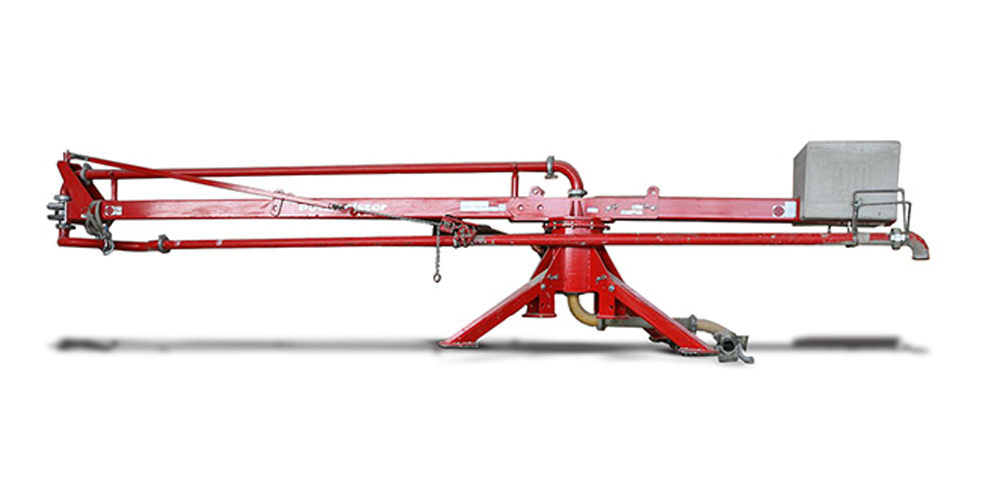

RV 15

Concreting for Huge Areas made Easy

Rotary distributors are cost-effective alternatives to truck-mounted concrete pumps, stationary booms or delivery lines, when it comes to distributing concrete over a wide range. It can be used for concreting large areas and floors that cannot be reached by the truck-mounted concrete pump. It is also used in tunnel construct sites. It can also be used for concreting pillars and manufacturing pre-cast concrete parts.

General Information

Arms

2
Horizontal Reach gross

15 m
Concreting Area

700 m²
Delivery Line

DN 100
Weight

2700 kg
Length x Width x Height

9100x1300x1800 mm

Key Features

Ideal for large areas and floors
Concrete areas of any size can be made ready for building with the help of a construction crane
Dimensions enable easy transport using a minimum of space
Concreting area of up to 700 m² from one fixed location
