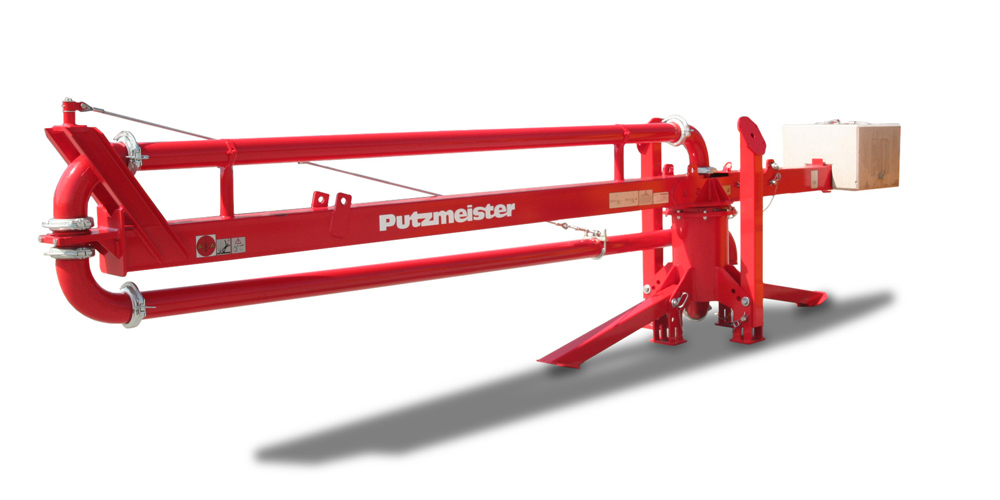

RV 13

Rotary Distributor with 13 m Reach and 500 m² Concreting Area

Rotary distributors complement truck-mounted concrete pumps, stationary placing booms or delivery lines, when it comes to distributing concrete over a wide range. They can be used for concreting large areas and floors that cannot be reached by the truck-mounted concrete pump as well as for concreting pillars. They are also used in tunnel construct sites and pre-cast factories.

Key Features

  • Ideal for large areas and floors
  • Concrete areas of any size can be made ready for building with the help of a construction crane
  • Dimensions enable easy transport using a minimum of space
  • Concreting area of up to 500 m² from one fixed location

Technical Details

General Information

  • Arms
    2
  • Horizontal Reach gross
    13 m
  • Concreting Area
    500 m²
  • Delivery Line (DN, Pressure)
    DN 100/125
  • Weight
    2600 kg
  • Length x Width x Height
    9100x1300x1800 mm
