RV 12

Hydraulic RV 12 Lift Rotary Distributor for Column Work

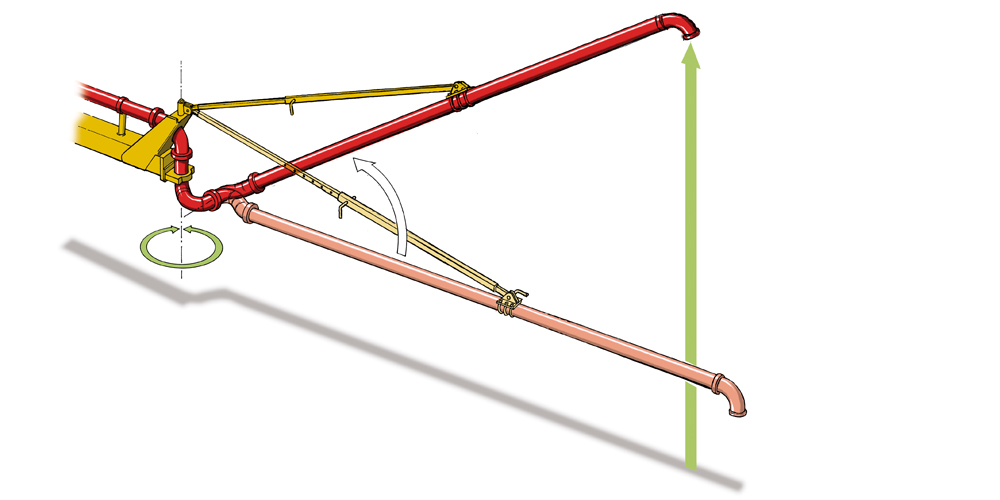

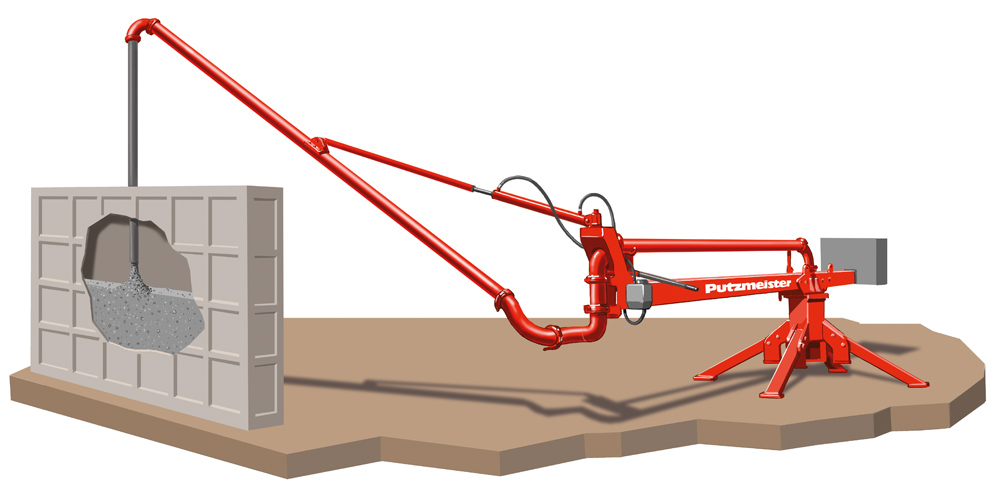

Designed for larger construction sites, the RV 12 Lift offers vertical movement of the last boom section, which is most beneficial for projects that include column work. The last section is lifted via hydraulic pump and provides vertical reach of 4 m. It can be used in concreting slabs, walls and columns of up to a height of 4 m. It is also used in pre-cast factories to fill smaller moulds.

Key Features

  • Adjustable height using hydraulic hand pump
  • Height can be increased by 0.5 m using bolt-on feet (optional)

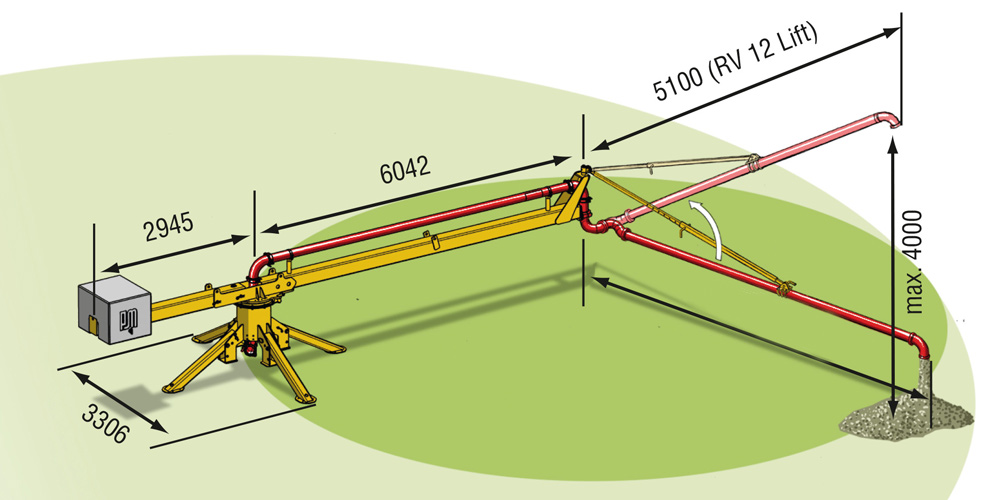

Technical Details

General Information

  • Arms
    2
  • Horizontal Reach gross
    12 m
  • Concreting Area
    450 m²
  • Delivery Line (DN, Pressure)
    DN 100/125
  • Weight
    2600 kg
  • Length x Width x Height
    9100x1300x1800 mm

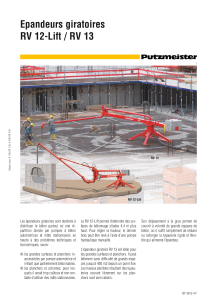

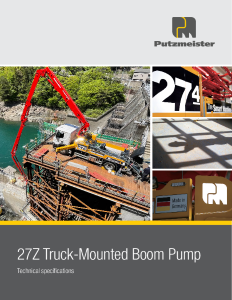

Brochures & Data Sheets
