RV 7

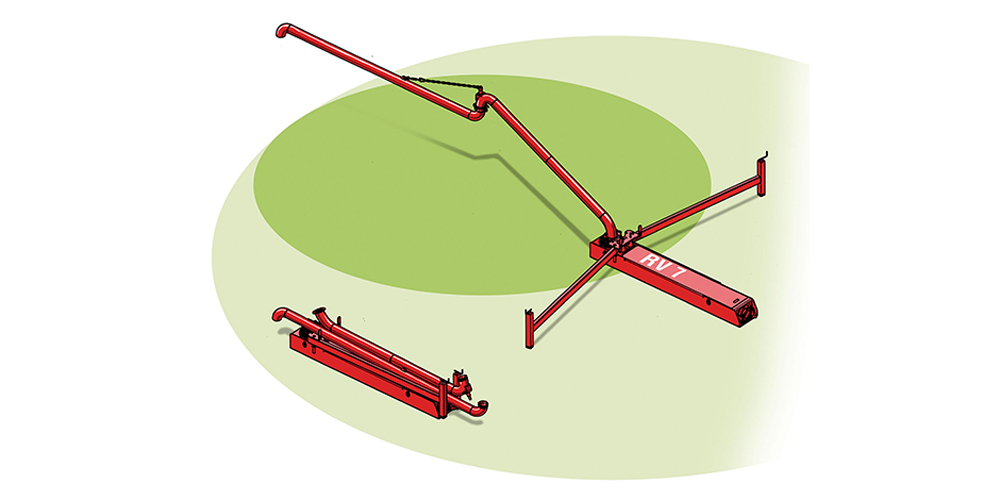

Flexible Mechanical Distributor RV 7 for Concrete Placing

Mechanical distributors are particularly suitable for concrete placing where direct distribution with truck-mounted concrete pumps or stationary concrete booms come up against technical and economic limitations.

The mechanical distributor RV 7 is a flexible and compact machine. Its small size and low-weight allows it to be transported easily. RV 7 is ideal for floors of small construction sites, and tunnel applications.

General Information

Arms

2
Horizontal Reach gross

6.6 m
Concreting Area

132 m²
Delivery Line

DN 125
Weight

610 kg

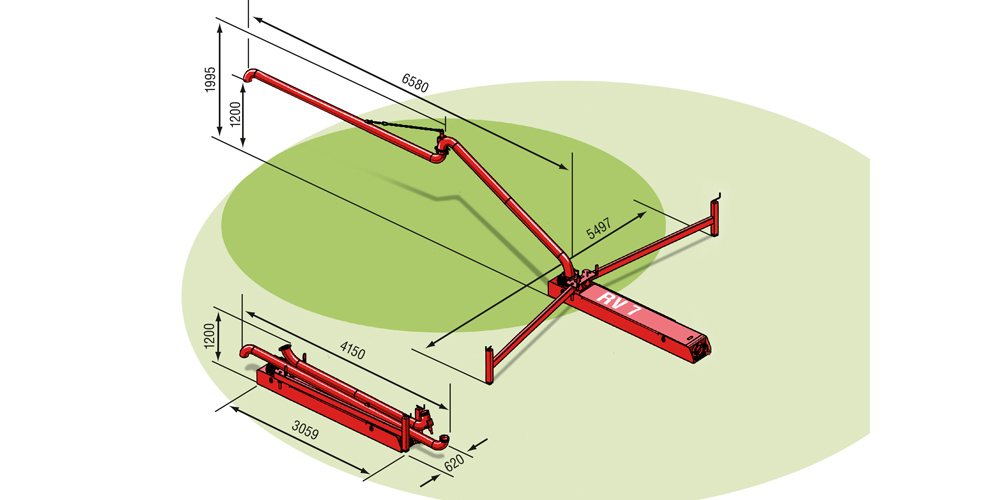

Length x Width x Height

4200 x 600 x 800 mm

Key Features

Small and flexible piece of equipment
Compact dimensions and low weight for easy transpor
Easily transported by trailer or on larger truck-mounted concrete pumps
Fits into the bracket for 3 m pipes as on the support feet of many machines
Can be easily assembled by 2 people within 10 minutes
