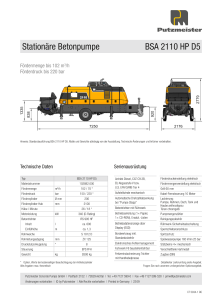

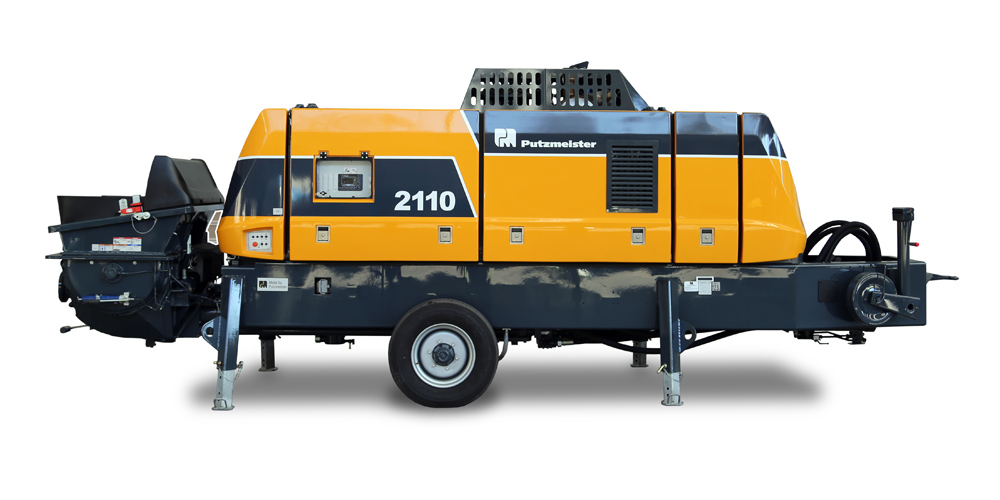

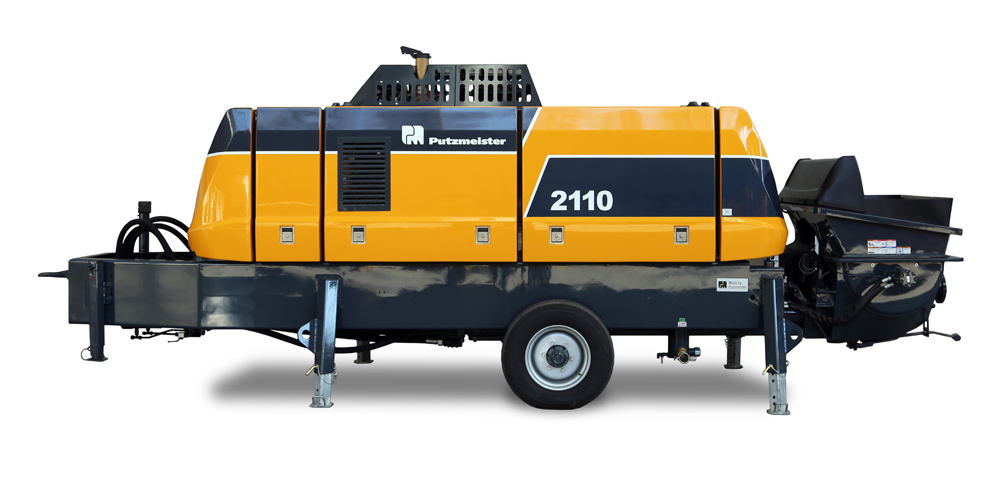

BSA 2110 HP D5

The specialist for long-distance pumping and building construction projects with the latest EU Stage V / US Tier 4 diesel engine.

In the further development of the proven BSA 2110 HP D, we had a challenging goal: to bring the emission guidelines into line with the needs of our customers. With the result that in future you can even increase your competitiveness while complying with the emission limits with more power and reduced fuel consumption.

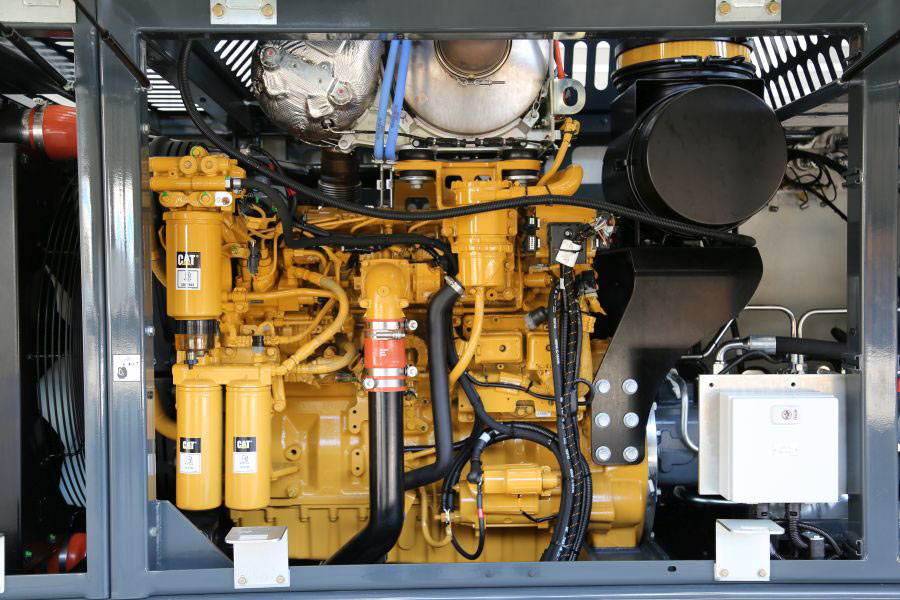

The BSA 2110 HP D5 is powered by a Caterpillar 6-cylinder diesel engine with EU Stage V emission level. The machine is equipped with two SCR (Selective Catalytic Reduction) systems to meet the legal requirements. Therefore, a diesel particulate filter is not necessary.

The BSA 2110 HP D5 is particularly suitable for long distance pumping and highrise applications. All machines sold in the EU now require a folding splash guard.

General Information

Output (rod side)

102 m³/hr
Output (piston side)

70 m³/hr
Delivery Pressure (rod side)

150 bar
Delivery Pressure (piston side)

220 bar
Strokes (rod side)

26
Strokes (piston side)

18
Engine Power

340 kW
Delivery Cylinder Diameter - Stroke Length

200/2100 mm
Pressure Connection

200 mm
Length x Width x Height

7250 x 2176 x 2779 mm
Weight

9300 kg
Trailer Type

F8

Key Features

Certified to EU Stage V (Regulation EU 97/68/EC)
Certified to U.S. Tier 4 (40CFR1039), CARB Tier 4 (13CCR2423)
CE mark
Less operating costs
Reduced noise development
External gate valve connection is standard
Optimum air flow with pressure ventilation makes it suitable for all weather condition
Up to 15% more performance comparable with Stage III/ Tier 3 engines
