Mixkret 6

Compact, Strong and Ideal to Complete the Concrete Spraying Process in Mining Applications

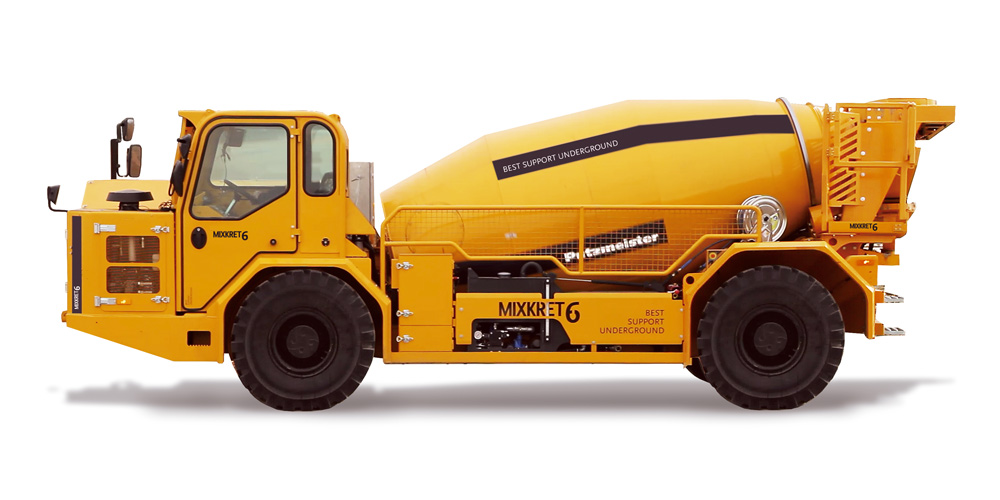

The Putzmeister Mixkret 6 with a concrete capacity of 6 m³ is the mixer of the Mixkret family with the largest capacity. The machine is equipped with a powerful 168 kW diesel engine and Integrated Continuously Variable Drive (ICVD) to fully use the motor power at all times, without interruptions of the tractive force, provides great climbing and movement power a max. speed of 20 km/h (25 km/h as option with EU-Stage IIIA engine).

Key Features

  • 6 m³ capacity for mixing and transporting concrete with electronic speed control system
  • Safety as a priority: triple braking system, FOPS/ROPS certified cabin, speed control system
  • Critical components are easily accessible from the ground level in order to facilitate boarding by maintenance personnel
  • The equipment’s rear functions can be controlled remotely through the cable control, allowing this to be fitted on both sides of the machine

General Information

  • Length x Width x Height
    7688 x 2365 x 2710 mm
  • Weight
    12000 kg
  • Ground clearance
    320 mm
  • Max. Longitudinal Gradient while Driving
    30 %
  • Max. Transversal Gradient while Driving
    10 %
  • Inner Turning Radius
    2404 mm
  • Outer Turning Radius
    6089 mm
  • Engine
    Diesel
  • Engine Power
    168 kW
  • Emission Stage
    EU-Stage llI A or EU-Stage V
  • Max. Speed
    20 or 25 km/hr
  • Diesel Tank
    265 l
  • Max. Concrete Capacity
    6 m³
  • Adjustable turning speed in both directions
    0-18 rpm
  • Concrete Discharge Height
    1175-1538 m
