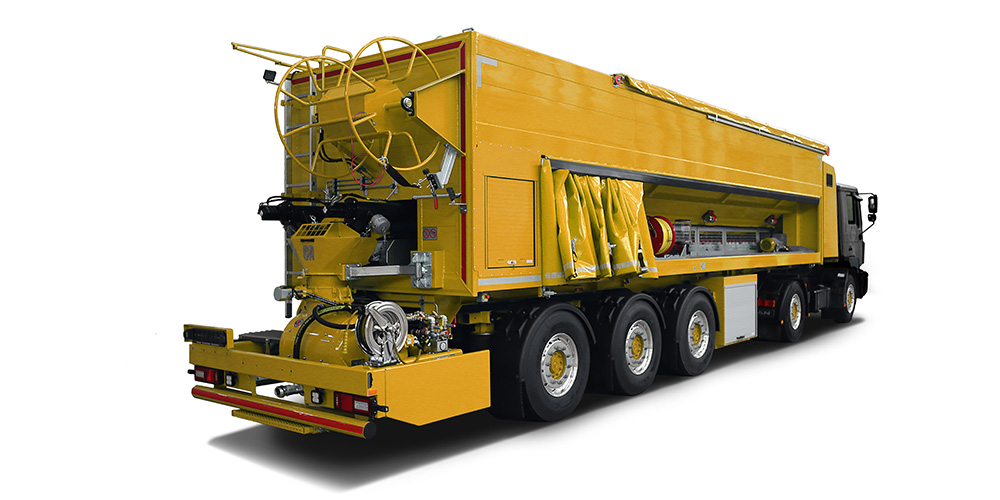

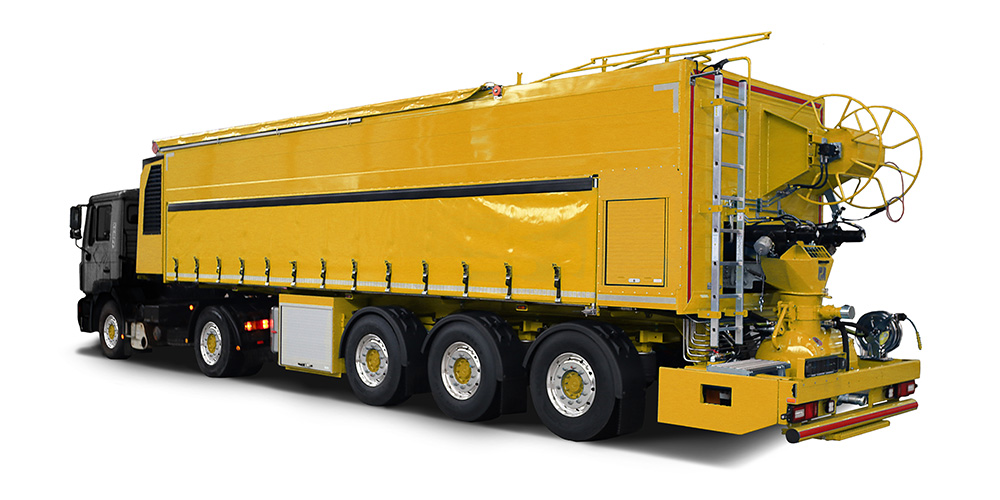

TransMix TML 5000 A

The TransMix TML 5000 A is designed as a horizontal-operating system and is now also available for cement and anhydrite screeds with a pneumatic conveyor

The TransMix TML 5000 A is designed as a horizontally operating system to offer our customers the following advantages:

■ Efficiency through maximum payload with the largest possible volume of the skip

■ Economical due to the best ratio of tare weight to payload thanks to aluminium construction

■ Fuel-saving thanks to the use of an efficient drive unit and optimisation of the hydraulic system

■ Best driving characteristics due to positively steered axles 2 and 3

■ Space-saving and comfortable in dense traffic due to optimised steering radii when cornering

Key Features

  • Display with rubber keypad
  • Radio system with display
  • Keypad with optical user guidance
  • LED headlights 4-fold
  • LED rear lights and reversing lights
  • Air suspension trailer, 1st axle with lift (traction aid) Mobile control Vibrator for aggregate 6-fold and binder 4-fold electric

General Information

  • Pump
    Compressed-air conveyor
  • Delivery Pressure
    8 bar
  • Delivery Rate
    5 m³/hr
  • Delivery Range
    180m horizontal, 90m vertical m
  • Max. Aggregate Size
    16 mm
  • Engine
    Diesel, Kubota V3307
  • Engine Power
    55.4 kW
  • Emission Stage
    V
  • Weight
    12600 kg
  • Water load capacity
    120 l
  • Length x Width x Height
    11.4x2.5x3.9 m
  • Geometric Volume
    25 m³

Documents

Brochures

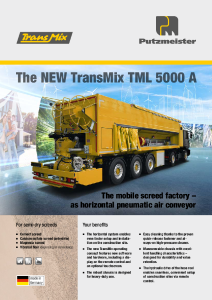

TransMix TML 5000 A Brochure EN

TransMix TML 5000 A Brochure EN

pdf | 357 KB

TransMix TML 5000 A Brochure EN

pdf | 357 KB

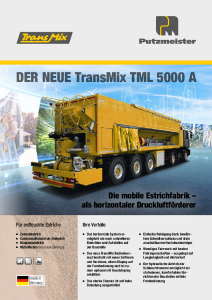

TransMix TML 5000 A Prospekt DE

TransMix TML 5000 A Prospekt DE

pdf | 358 KB

TransMix TML 5000 A Prospekt DE

pdf | 358 KB

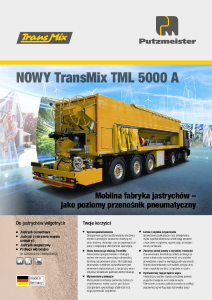

TransMix TML 5000 A Broszura PL
