BSF 39-4

The Jack-Of-All-Trades

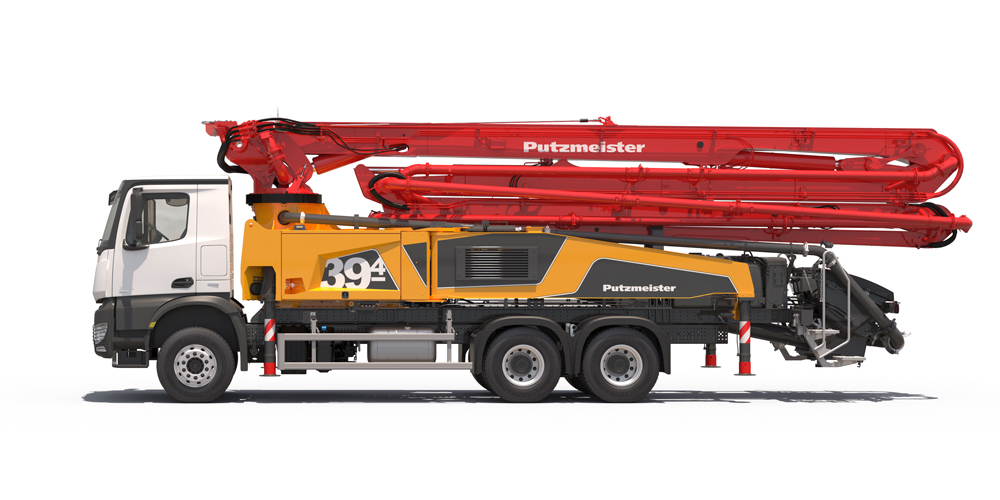

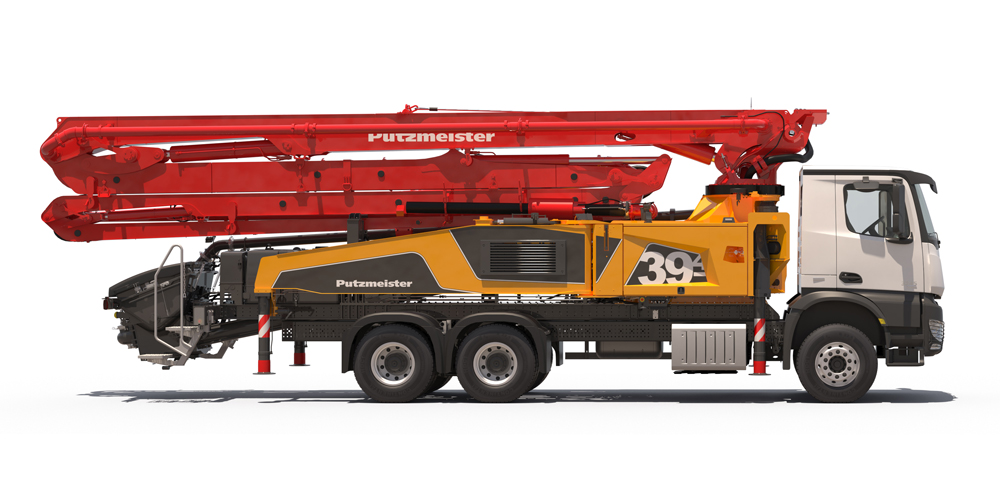

Putzmeister’s BSF 39-4 truck-Mounted Concrete Boom Pump comes equipped with a newly designed four-section Z boom that can either be permanent or detachable. It’s a jack-of-all-trades that can achieve typical and high-rise pumping applications as well as frost law and special weight considerations. We’ve listened to our user feedback and put it into action. Rather than purchasing three separate pieces of equipment, customers will benefit from the value of a single, customizable machine.

Key Features

  • Easy replacement of the radio remote control thanks to radiomatic(R) iLOG Technology Lithium ion battery for a working time of up to 17 hours
  • Putzmeister concrete pump technology is designed to withstand extreme conditions as it performs in high- pressure and long-distance pumping applications

General Information

  • Arms
    4
  • Folding Type
    Z
  • Vertical Reach
    38.30 m
  • Horizontal Reach gross
    33.60 m
  • Unfolding Height
    9 m
  • Slewing Range
    365 °
  • End Hose - Length
    3 m
  • Delivery Line
    DN 125

Configuration

  • Delivery Cylinder Diameter - Stroke Length
    230/2100 mm
  • Output (rod side)
    160 m³/hr
  • Output (piston side)
    108 m³/hr
  • Delivery Pressure (rod side)
    85 bar
  • Strokes (rod side)
    31

Documents

Brochures

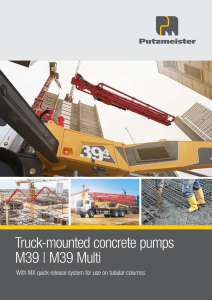

BSF 39-4 Brochure EN

BSF 39-4 Brochure EN

pdf | 2 MB

BSF 39-4 Brochure EN

pdf | 2 MB

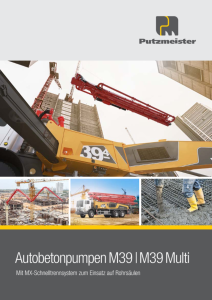

BSF 39-4 Prospekt DE

BSF 39-4 Prospekt DE

pdf | 2 MB

BSF 39-4 Prospekt DE

pdf | 2 MB

Data Sheets

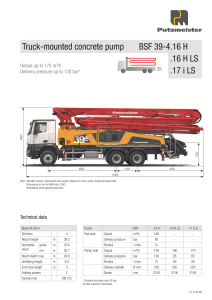

BSF 39-4 Data Sheet EN

BSF 39-4 Data Sheet EN

pdf | 2 MB

BSF 39-4 Data Sheet EN

pdf | 2 MB

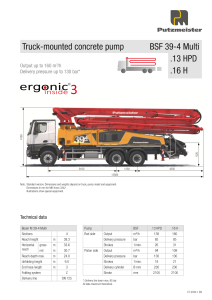

BSF 39-4 Multi Data Sheet EN

BSF 39-4 Multi Data Sheet EN

pdf | 2 MB

BSF 39-4 Multi Data Sheet EN

pdf | 2 MB
