P 13

Mixing - Pumping - Spraying with one Machine - The P 13

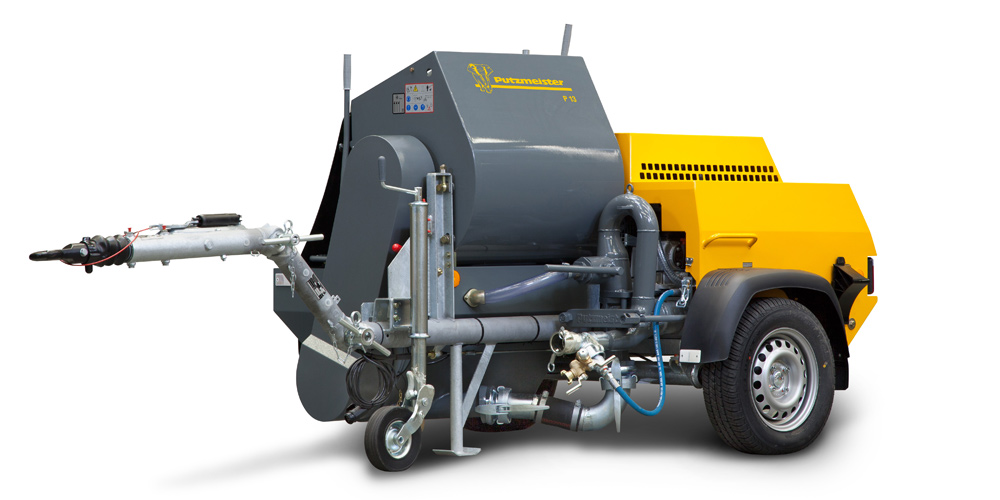

The Putzmeister P 13 is robust and service-friendly for the most challenging site mixes in the world.

Thanks to its powerful and reliable piston pump it is suitable for: site mixes, interior and exterior plaster, grouting, filling, masonry and cement mortar, bentonite slurry, pumpable sand and self levelling floor screed as well as for the filling of micropiles in tunneling construction sites.

Key Features

  • Robust and low-maintenance for the most difficult site-made mixes all over the world
  • Robust, powerful piston pump (KA 230) even processes sand
  • The delivery capacity can be mechanically set over 3 levels
  • 170 l compulsory mixer ensures optimum mix quality
  • Also available with piston pump KA 139 instead of KA 230
  • Robust components for reduced wear and tear

General Information

  • Feed Hopper
    200
  • Output
    20-80 l/min
  • Output
    30-90 l/min
  • Horizontal Reach gross
    150 m
  • Vertical Reach
    80 m
  • Delivery Pressure
    40 bar
  • Compressor
    300 l/min
  • Pump
    KA 230
  • Engine
    Electric
  • Engine Power
    7.5 kW
  • Engine Revolutions
    2900
  • Strokes (piston side)
    130 mm
  • Delivery Cylinder Diameter - Stroke Length
    100 mm
  • Weight
    990 kg
  • Length x Width x Height
    3000 x 1640 x 1450 mm
  • Filling Height
    1300 mm
  • Max. Aggregate Size
    6 mm
  • Max. Aggregate Size
    8 mm
  • Chassis
    unbraked
  • Pressure Connection
    M 50

Documents

Brochures
P 13 Prospekt DE

P 13 Prospekt DE

pdf | 292 KB

P 13 Prospekt DE

pdf | 292 KB

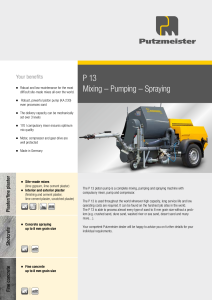

P 13 Brochure EN

P 13 Brochure EN

pdf | 292 KB

P 13 Brochure EN

pdf | 292 KB

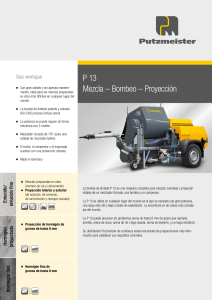

P 13 Catálogo ES

P 13 Catálogo ES

pdf | 298 KB

P 13 Catálogo ES

pdf | 298 KB
P 13 Brochure FR

P 13 Brochure FR

pdf | 298 KB

P 13 Brochure FR

pdf | 298 KB
P 13 Brochure US

P 13 Brochure US

pdf | 2 MB

P 13 Brochure US

pdf | 2 MB
