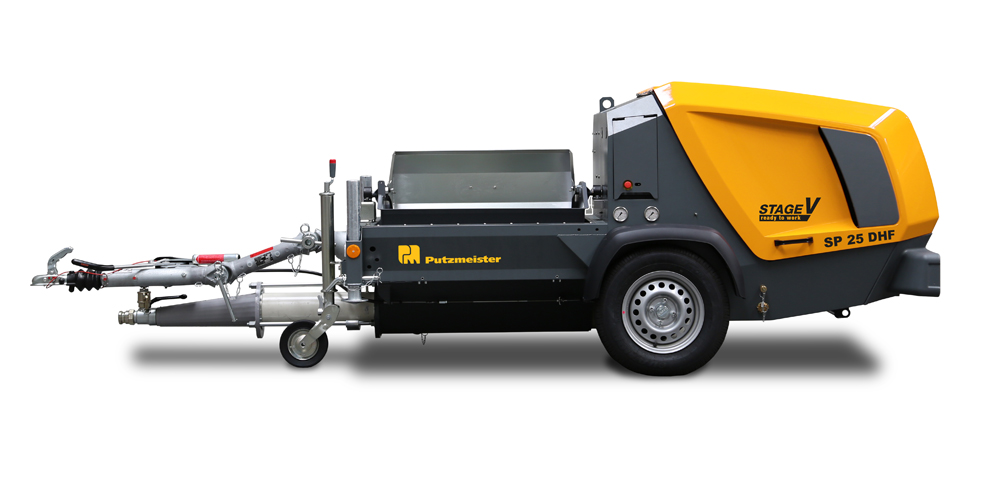

SP 25 DHF

Robust and Powerful, for Large Volumes of Self-Levelling Floor Screed

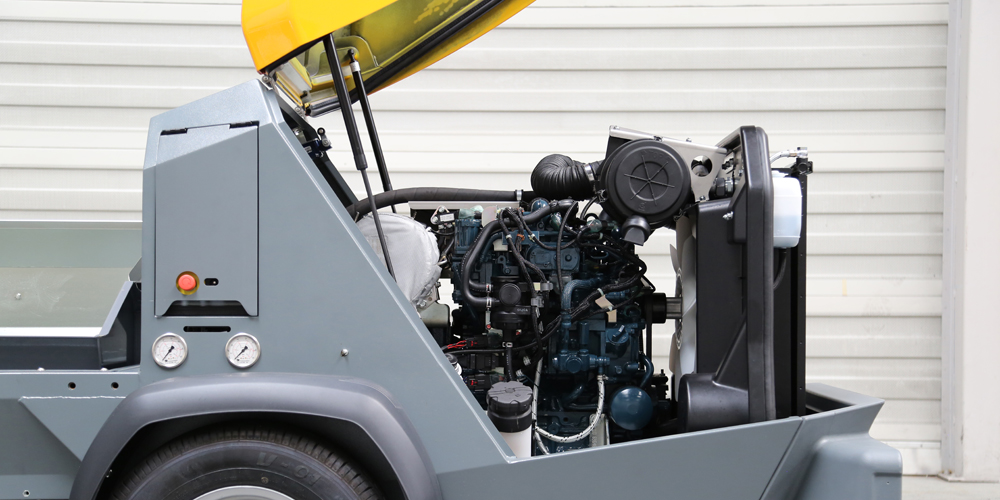

The powerful SP 25 DHF worm pump is suitable for conveniently and reliably placing large volumes of self-levelling floor screed. Thanks to the strong three-cylinder diesel engine with 37 kW and “Stage V” emissions, the pump can be operated without issues in the whole of the EU and Switzerland now and in future. The increased efficiency focuses on higher throughputs,  longer delivery ranges and higher delivery pressures.

The large filling area features a swinging spray guard and a powerful vibrating screen. The low filling height facilitates loading on the construction site as well as the final cleaning. The low pump weight also makes for easier handling on the construction site.

Key Features

  • Robust design – tested in construction site use and on the test track
  • Supports a variety of worm pumps through to the 2L8
  • Reliable remote control makes possible a variety of functions

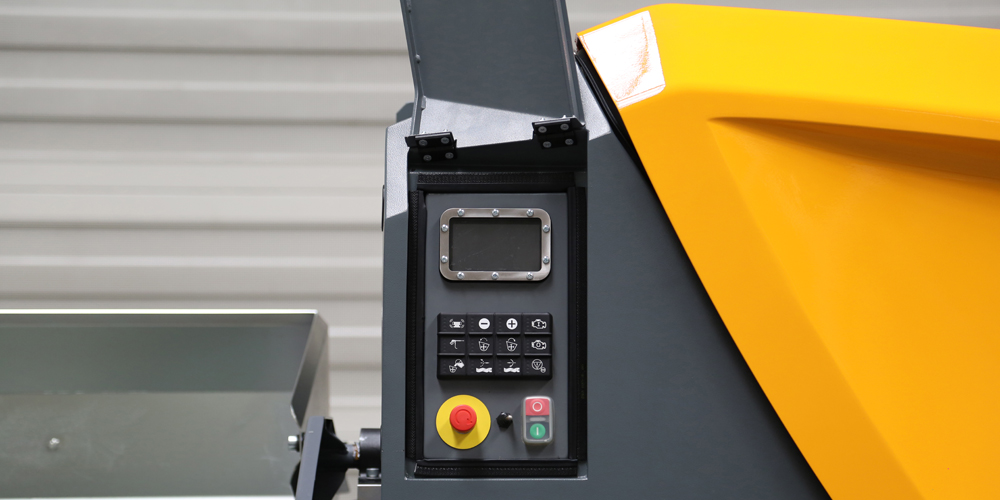

  • Central control with intuitive keypad and clearly arranged display
  • Larger tank for maximum operational performance without refuelling
  • Support legs for optimal stability on the construction site
  • Robust plastic cover according to the highest quality standard for maximum durability
  • Safe transfer of machine with crane – thanks to integrated crane lugs

General Information

  • Feed Hopper
    250 l
  • Output
    20 m³/hr
  • Delivery Pressure
    35 bar
  • Horizontal Reach gross
    200 m
  • Vertical Reach
    60 m
  • Pump
    Worm Pump 7515 Premium
  • Engine
    3-Cylinder Kubota, Stage V
  • Engine Power
    37 kW
  • Engine Revolutions
    2700 rpm
  • Diesel Tank
    40 l
  • Weight
    1 050 kg
  • Length x Width x Height
    4 280 × 1 410 × 1 300 mm
  • Filling Height
    730 mm
  • Max. Aggregate Size
    8 mm
  • Chassis
    braked, approved for road use

Documents

Brochures
SP25 DHF Brochure EN

SP25 DHF Brochure EN

pdf | 253 KB

SP25 DHF Brochure EN

pdf | 253 KB

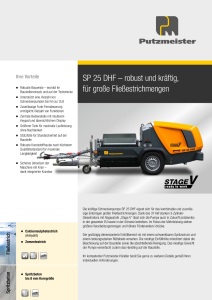

SP25 DHF Prospekt DE
