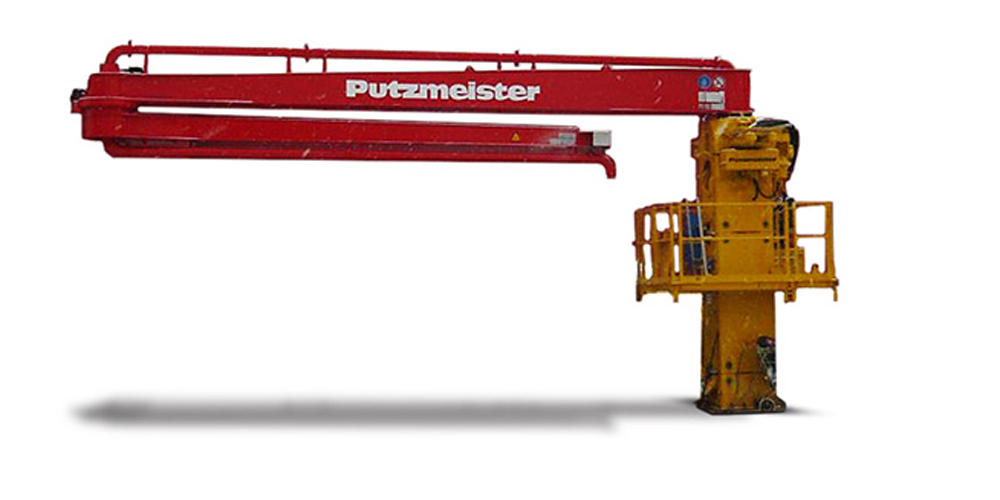

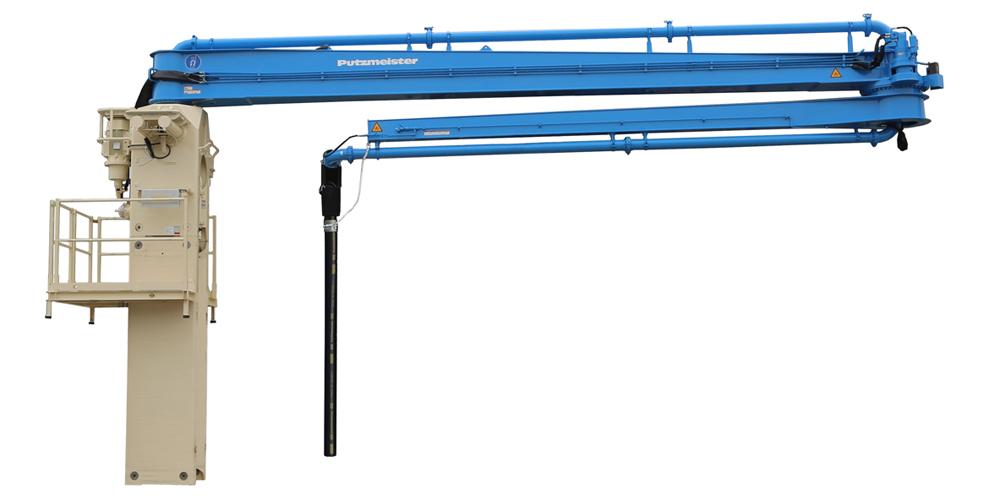

RV 16-2

Hydraulic Rotary Distributor with a Reach of 16 m for Precast Formworks

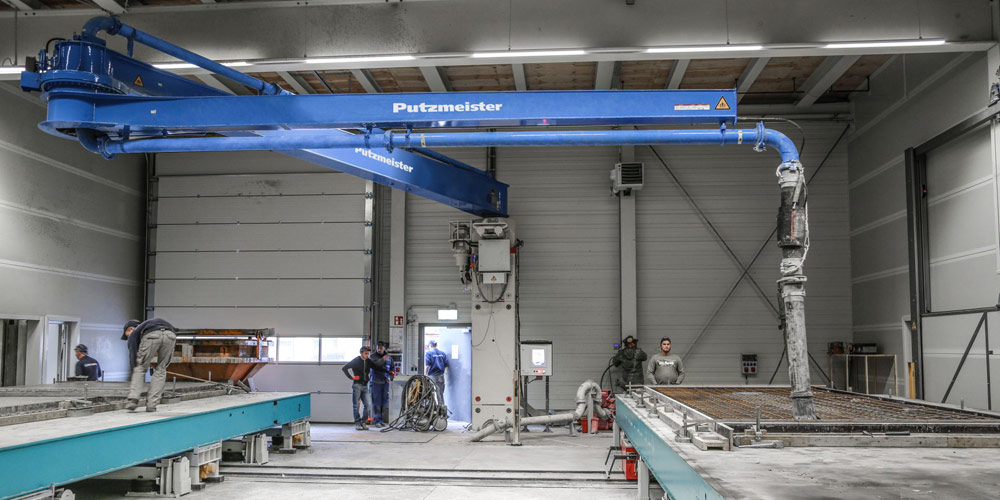

The rotary distributor RV 16-2 is ideal for precast formworks. It can be mounted temporarily for a project or mounted for extensive use. With its hydraulic moveable arms and 16 m reach, it is perfect for big formworks. Since it is mounted on a column, it takes very little space to store in the factory building.

Key Features

  • Can be slued hydraulically
  • Mounted on Putzmeister column system RS 850, Needs a footprint of only 1x1m
  • Concreting area of up to 800 m² from one fixed location

General Information

  • Arms
    2
  • Horizontal Reach gross
    16 m
  • Concreting Area
    800 m²
  • Delivery Line (DN, Pressure)
    DN 125
  • Weight
    5400 kg
