TB 130 EU

5-Section Hydraulic Conveyer with Quick Setup for Rough Terrain

Strong, yet lightweight and easy to control, the Putzmeister Telebelt® TB 130 conveyer has a horizontal reach of 38 m to save you time and labor. The five-section telescoping boom and fully hydraulic conveyor handle concrete slumps up to 305 mm and materials ranging from sand to 100 mm rock. With an outrigger design for quick setup in congested areas and rough terrain, the TB 130 is ideal for projects such as wind farms, dams, bridge decks, and landscaping.

Key Features

For a variety of material from non pumpable concrete to sand and gravel
Six hopper options to fit different job needs
Reversing conveyor feature to switch direction of material flow
Performs multiple tasks from one location

General Information

Arms

5
Conveyor Horizontal Reach

38.51 m
Conveyor Horizontal Reach

33.39 m
Conveyor Horizontal Reach

36.21 m
Conveyor Belt Width

457 mm
Feed Conveyor Length

11.3 m
Feed Conveyor Belt Width

457 mm
End Hose - Length

4.57 m
Discharge height from grade

21.31 m
Discharge height from grade

5.88 m
Output

275 m³/hr
Outrigger spread L-R - front hydraulically extended out & down

8.74 m
Outrigger spread L-R - rear hydraulically swing out & extend down

8.88 m

Brochures & Data Sheets

Telebelt TB130 Typenblatt DE

pdf | 727 KB

Telebelt TB130 Data Sheet EN

pdf | 727 KB

Brochure TB130 G4 EN

pdf | 3 MB

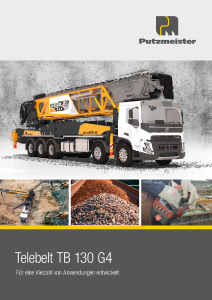

TB 130 EU Prospekt DE

pdf | 2 MB
