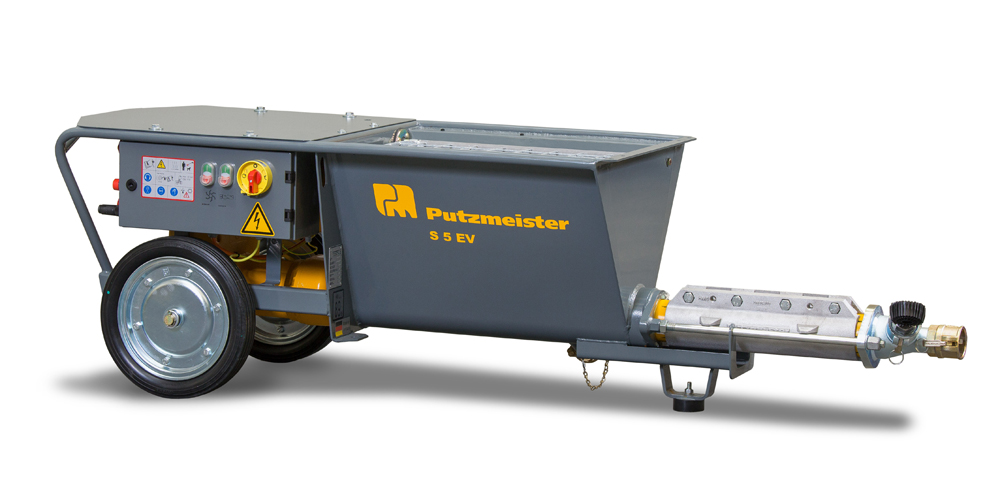

S 5 EV-EVTM

Universal Worm Pump

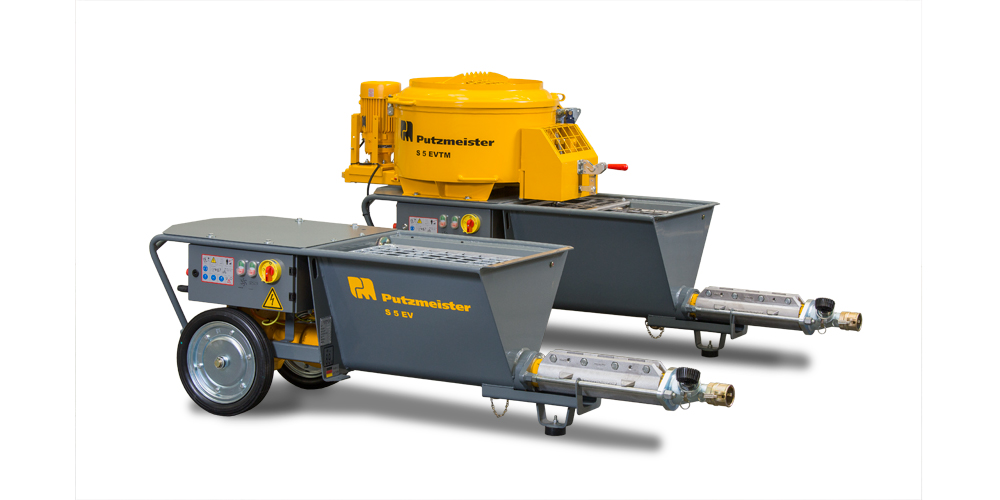

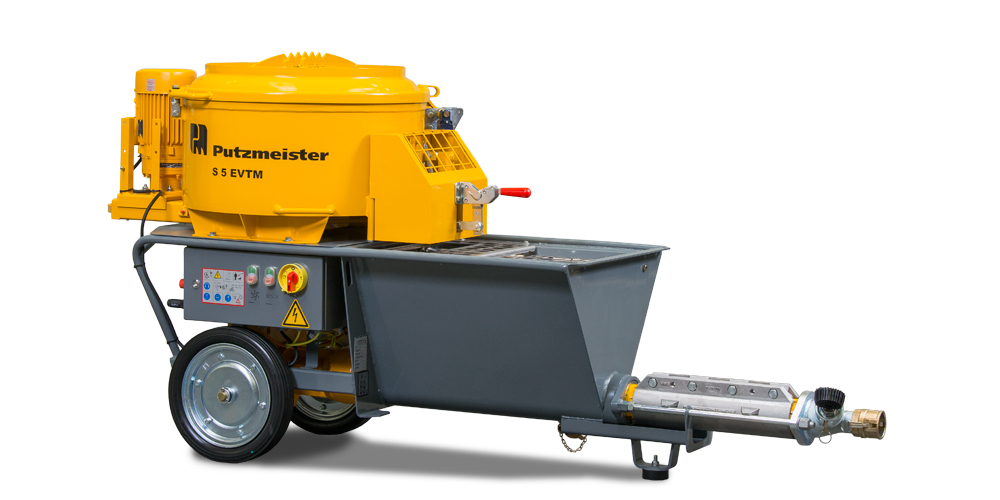

The S 5 EV plastering machine is a modular system. The S 5 EV can be modulared with the TM pan mixer. The pan mixer enables you to mix high-quality materials delivered as bagged material.

It is suitable for a variety of material such as cements suspensions, ground coat plasters and insulating plasters, rough coat and textured plasters, trowel plaster, adhesive bonded joint, masonry mortar, refractory mortar, sealing suspensions, injection mortar, filling and anchoring mortar, dispersion plaster, fiber mortar, fibreglass concrete, bonding mortar, stucco and grouts. It can be used for exterior plaster (lime, lime cement and insulating plaster) as well as interior plaster (lime plaster).

Key Features

  • Larger hopper with safety grill and safety switch
  • Plug-in cardan shaft for easy worm part replacement
  • Infinitely adjustable delivery rate
  • Mounted pan mixer (TM), ideal for materials needing to be mixed especially intensively

General Information

  • Feed Hopper
    80 l
  • Output
    7-40 l/min
  • Horizontal Reach gross
    60 m
  • Vertical Reach
    40 m
  • Delivery Pressure
    25 bar
  • Pump
    2L6
  • Engine
    Electric
  • Engine Power
    5.5 kW
  • Operating Voltage - Frequency
    400 V / 50 Hz
  • Weight
    190 kg
  • Length x Width x Height
    2290 x 680 x 650 mm
  • Filling Height
    EV: 650 / EVTM: 1150 mm
  • Max. Aggregate Size
    6 mm
  • Pressure Connection
    M 50

Configuration

  • Feed Hopper
    100 l
  • Engine Power
    2.2 kW
  • Weight
    400 kg
  • Length x Width x Height
    2505 x 680 x 1150 mm
  • Filling Height
    1150 mm
